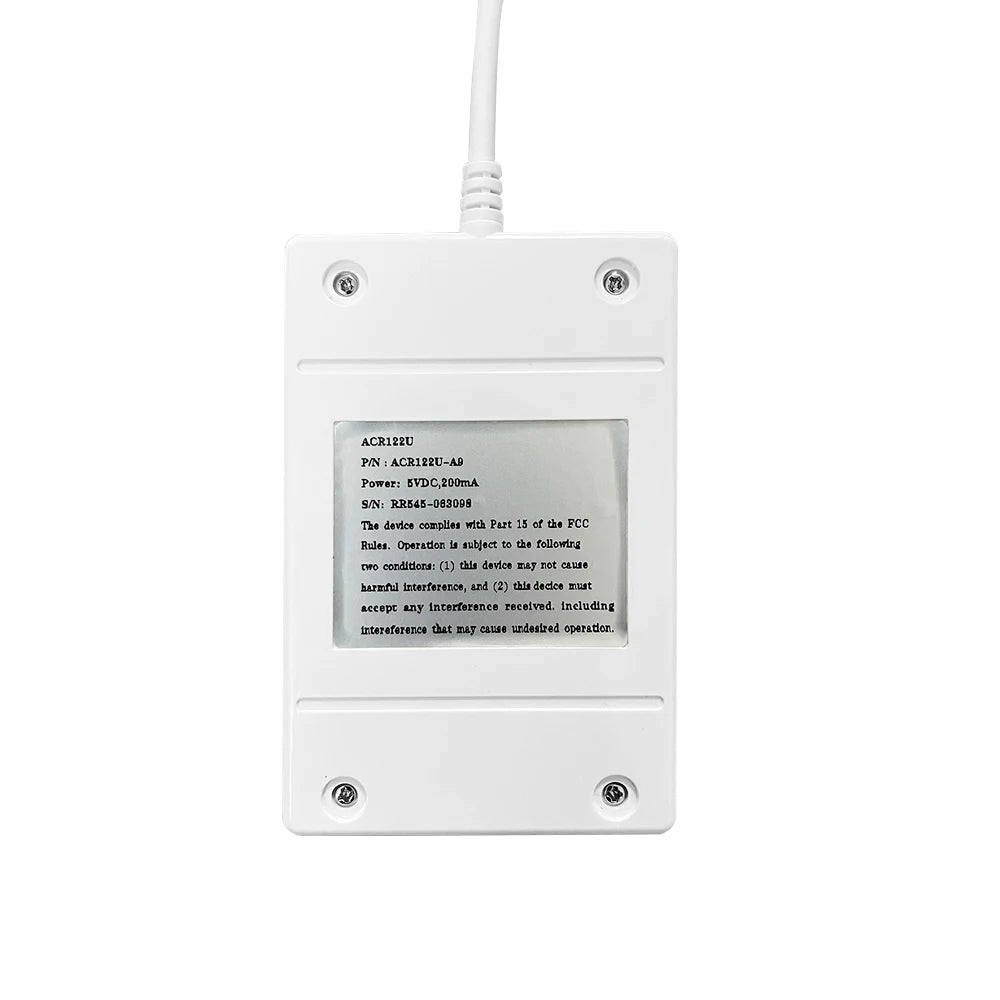

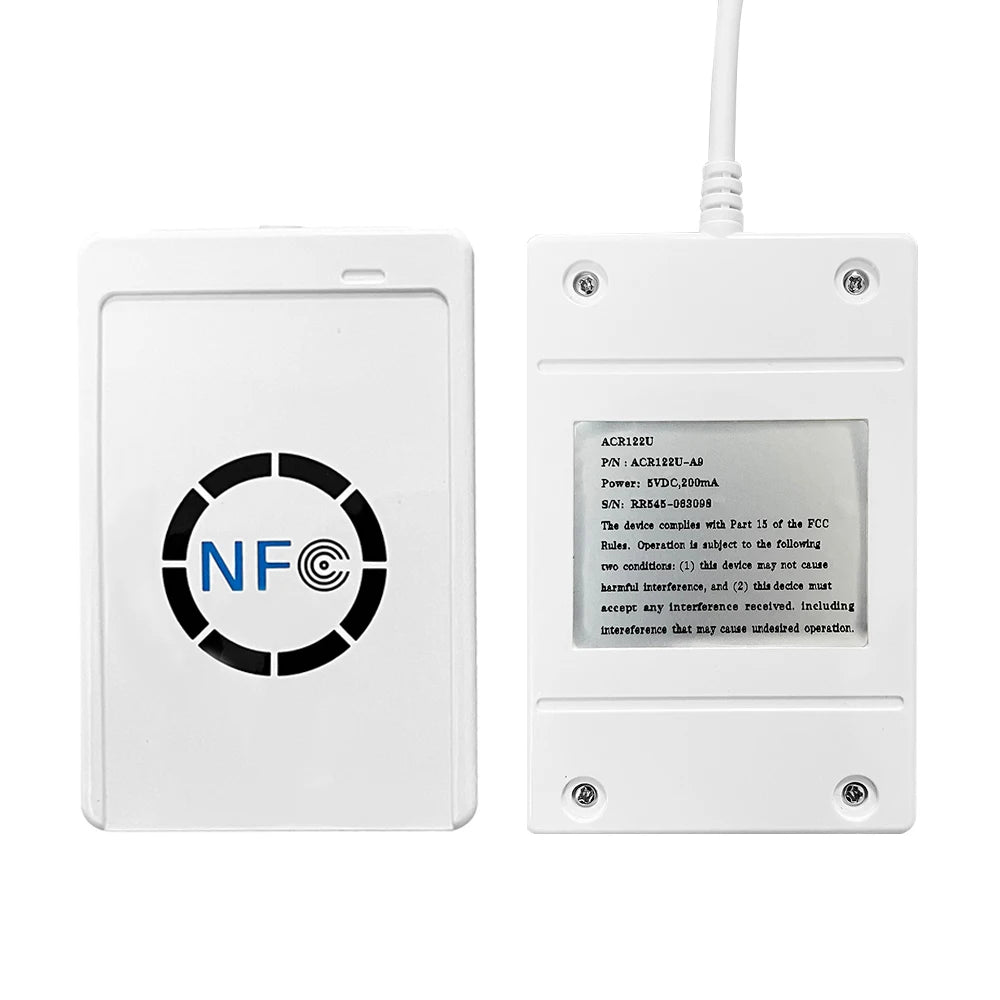

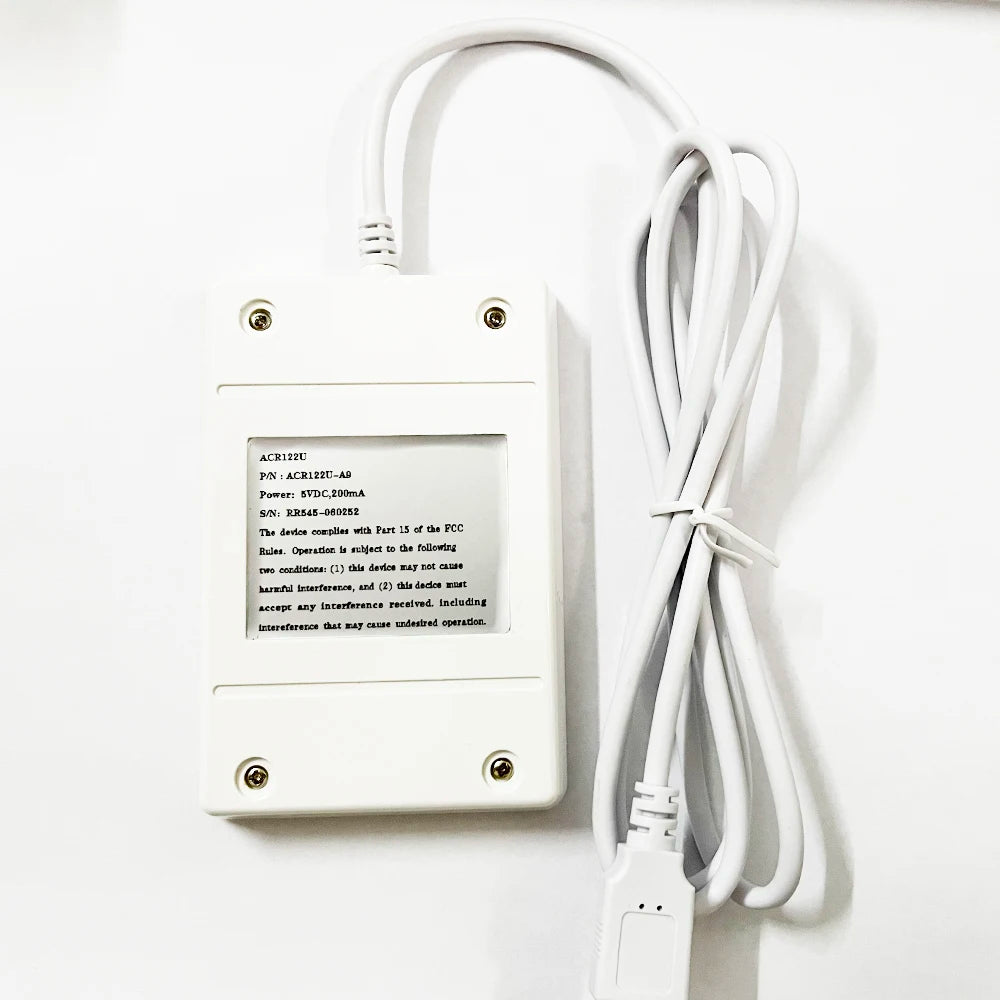

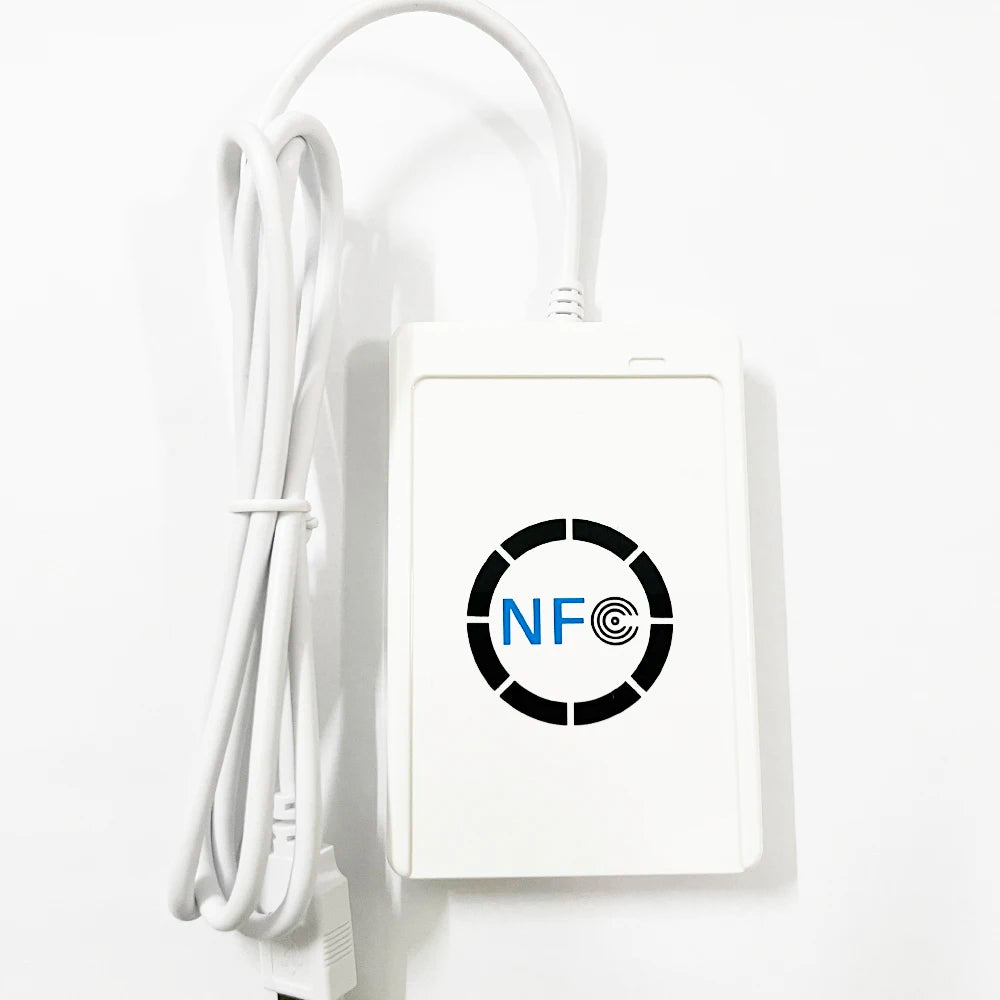

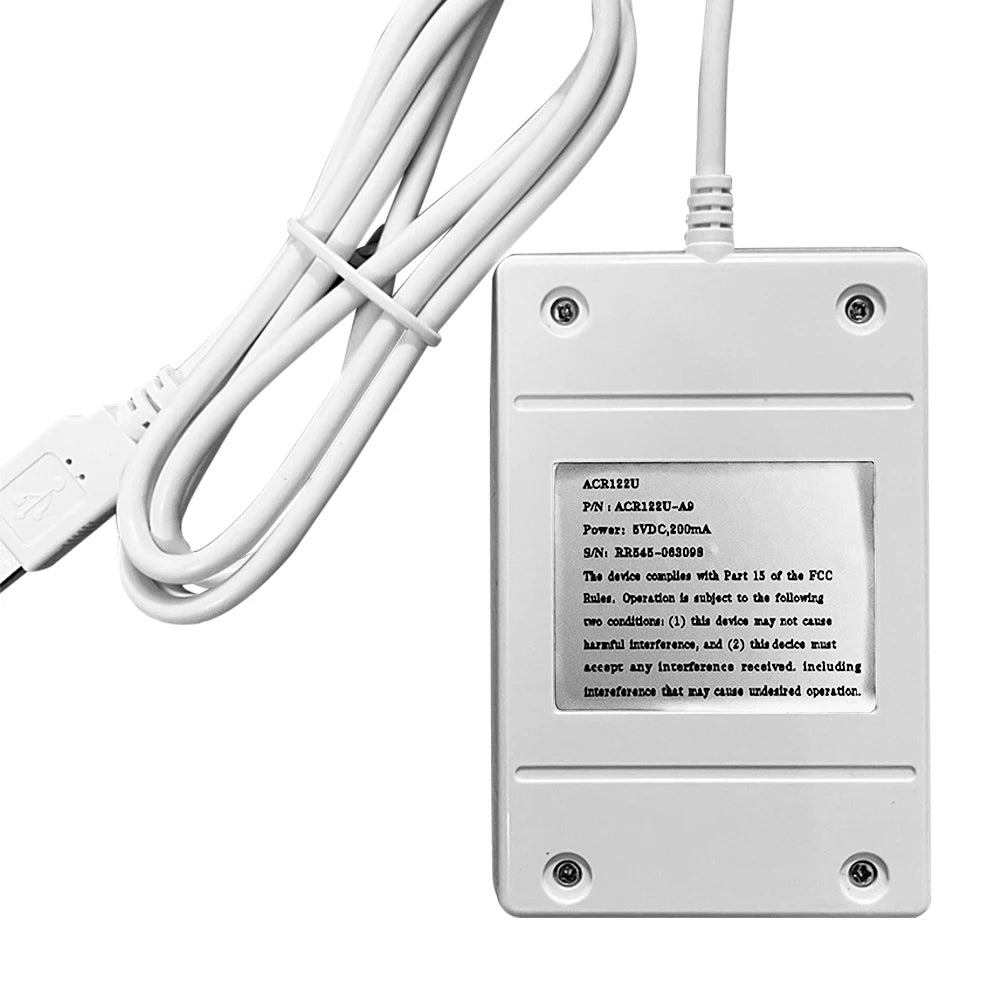

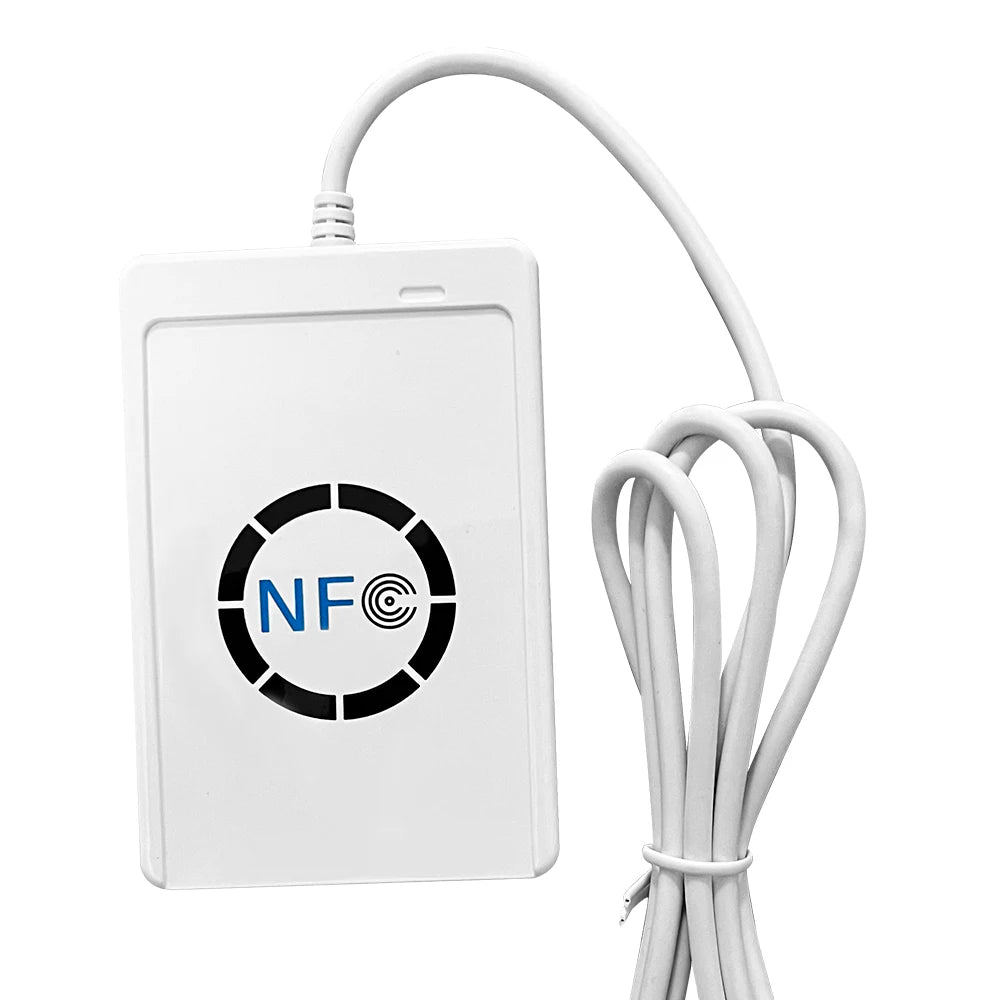

RFID Smart Card Reader Contactless Writer Copier Duplicator Writable Clone NFC ACR122U USB S50 13.56mhz M1 Card Reader

Download link of software:

https://drive.google.com/drive/folders/16I6t3MpN5OUY4bdB9jk0rWNYBFN3-x5c?usp=sharing

Software download：

https://www.camelote.cn/

Features:

• 100% Brand new and high quality!

• USB 2.0 Full Speed Interface

• CCID Compliance

• CCID-compliant


• PC/SC-compliant


• Read/write speed up to 424 kbps


• Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)


• Supports ISO 14443 Type A and B, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags


• Supports for Mifare Ultralight C (via pseudo APDUs) and for Mifare Plus SL1 (4 Byte UID, via pseudo APDUS) and SL3


• Supports all 3 modes of NFC: reader, card emulation and peer-to-peer modes


• Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)

• USB PnP

Application:

• 1. Network access control

• 2. Bank&paymen

• 3. NFC mobile ta

• 4. Public transportation terminal

• 5. Automatic fare collectio

• 6. Physical access contro

• 7. Customer loyalt

• 8. Time and attendanc

• 9. Contactless public phone

• 10. Vending machine

Specifications:

Dimension: 98 mm (L) x 65 mm (W) x 12.8 mm (H)

Interface: USB Full Speed

Operating Distance: <= 50mm (depends on tag type)

Supply Voltage: Regulated 5V DC

Supply Current: 200mA (operating); 50mA (standby); 100mA (normal)

Operating Temperature: 0-50°C

Operating Frequency: 13.56 MHz

Smart Card Interface Support: for ISO14443 Type A & B, for Mifare, for FeliCa, 4 types of NFC (ISO/IEC18092) tags

Operating System Support: Win 98, Win ME, Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win

Server 2008, Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2008 x64, Win

Server 2008 R2 x64, Windows CE 5.0, Linux, Mac (Please find the proper software to support it)

Package assembly information:
