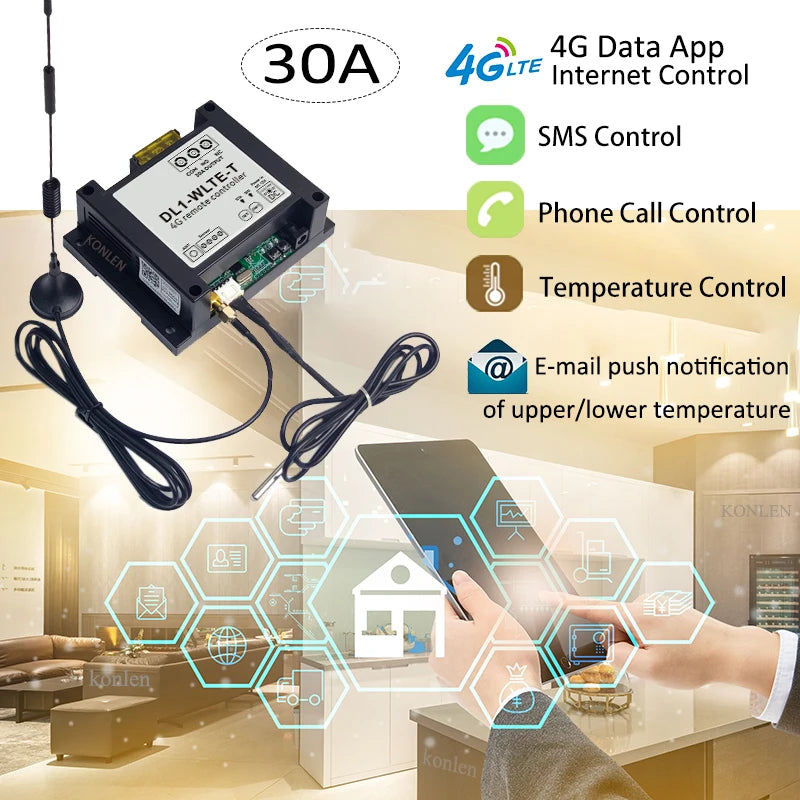

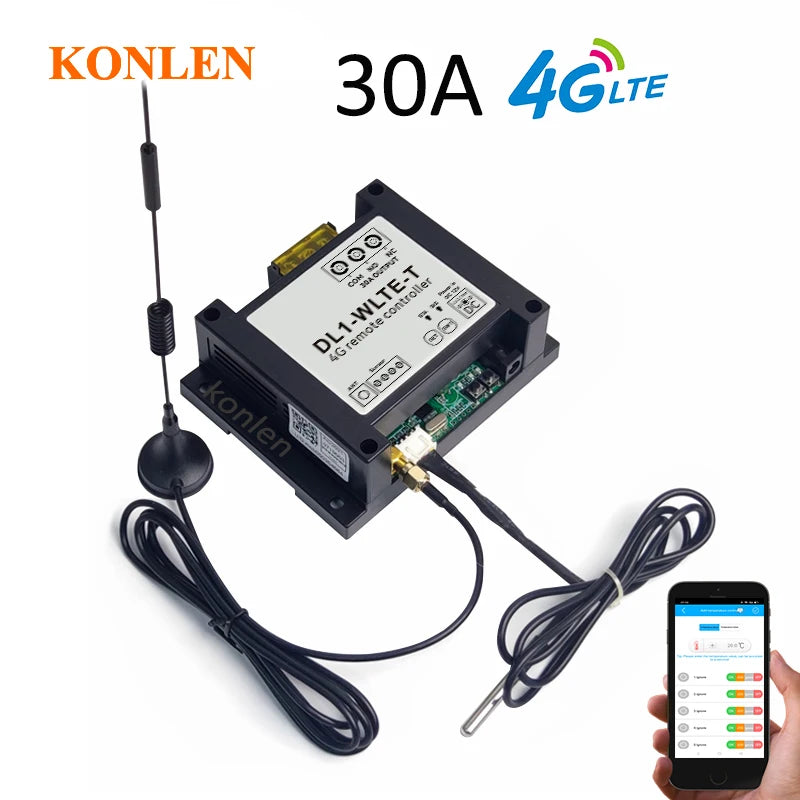

4G LTE APP GSM Temperature Sensor Controller Smart Thermometer Thermostat With Relay Switch SMS Remote Control Automation DL1

$316.90 USD

~~$380.28 USD~~ $316.90 USD

Sale Sold out

Taxes included.

Color TVC version T version

Quantity

There are two versions for option:

T version: model DL1-WLTE-T doesn't support power failure alarm function

TVC version: model DL1-WLTE-TVC supports power failure alarm function.

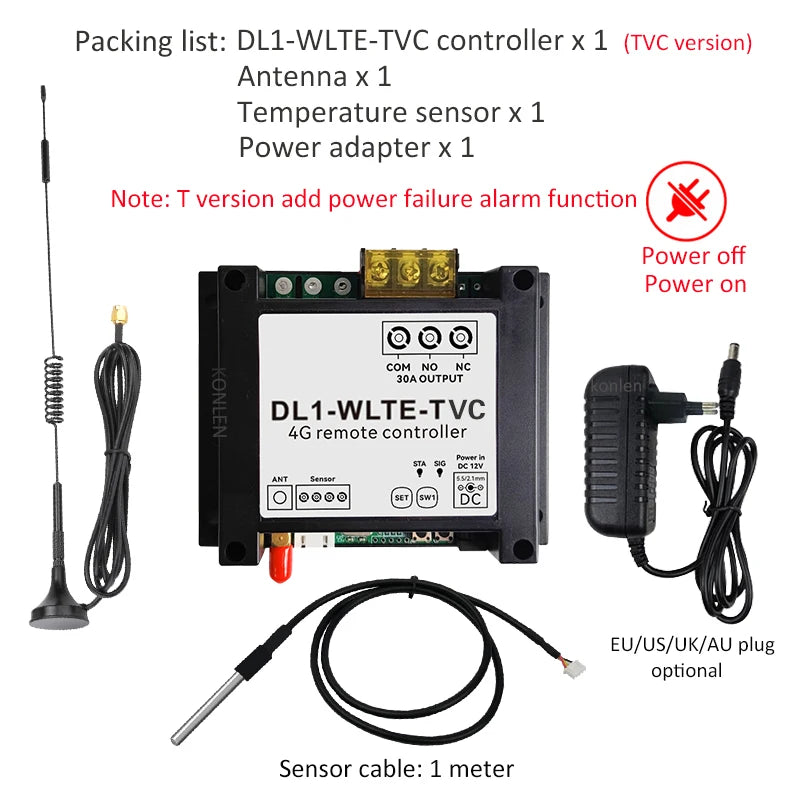

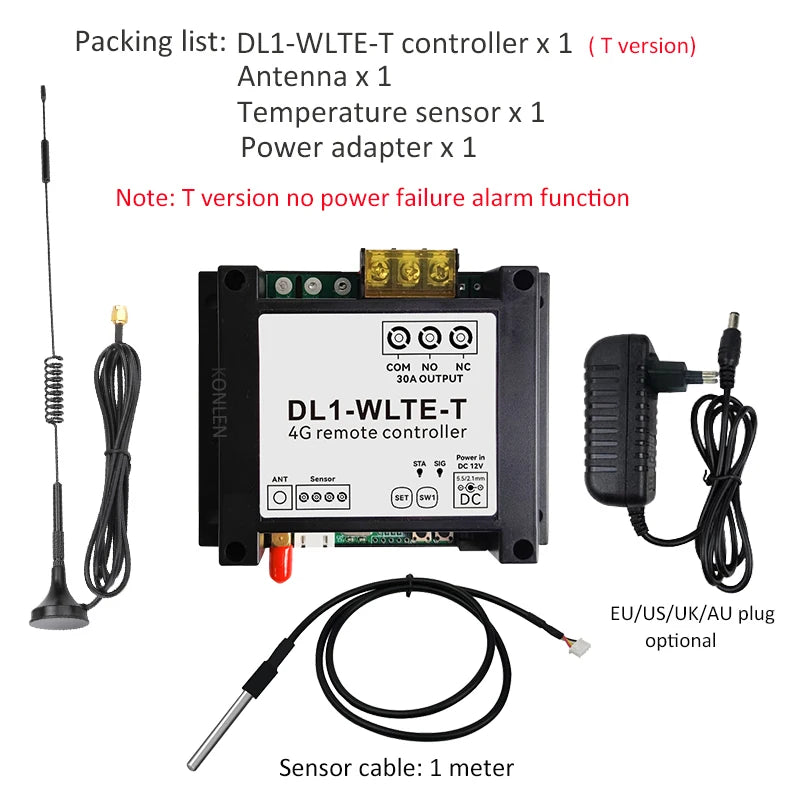

Both two options includes temperature sensor and DC12V power adpater.

Main features:

1. The controller need be installed with a 4G LTE SIM card. Please use your local 4G SIM card.

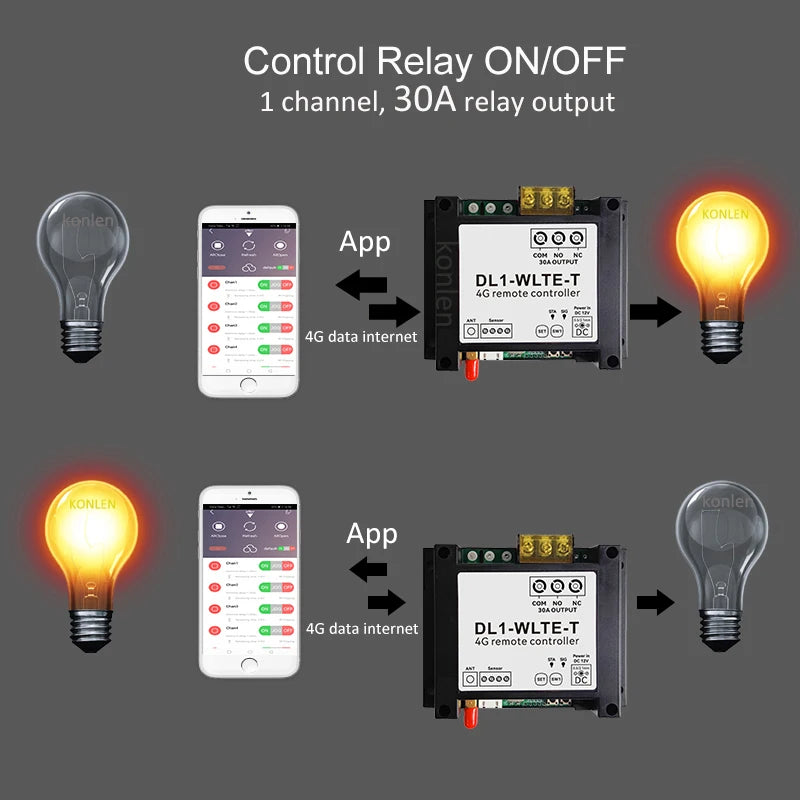

2. With one 30A relay ouput, It can control all kinds of high power equipments on/off by SMS/Call or via App (WLTE Control) remotely. The App communicates with controller via 4G data internet acess.

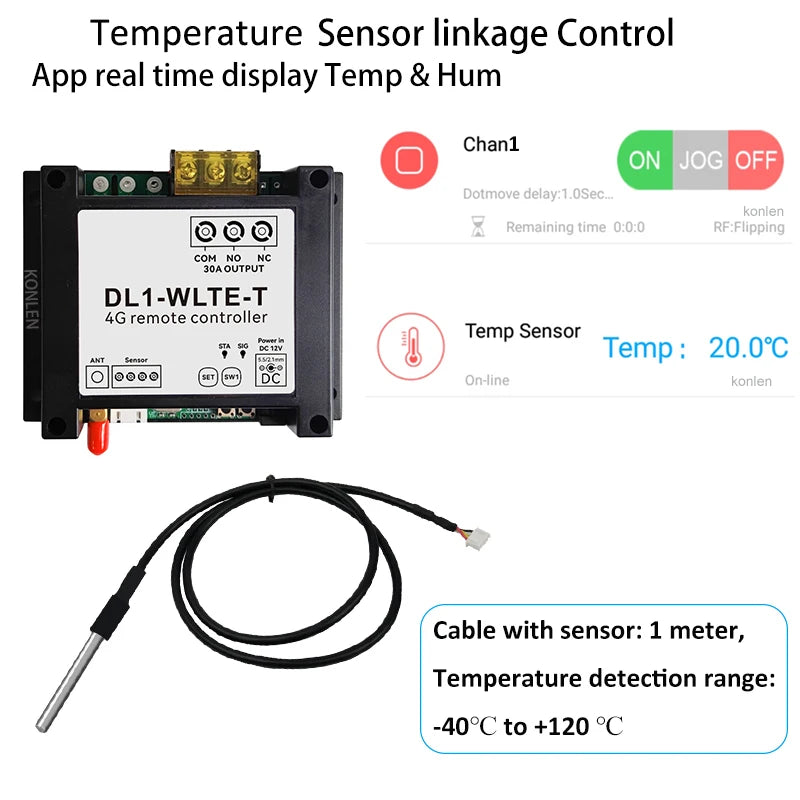

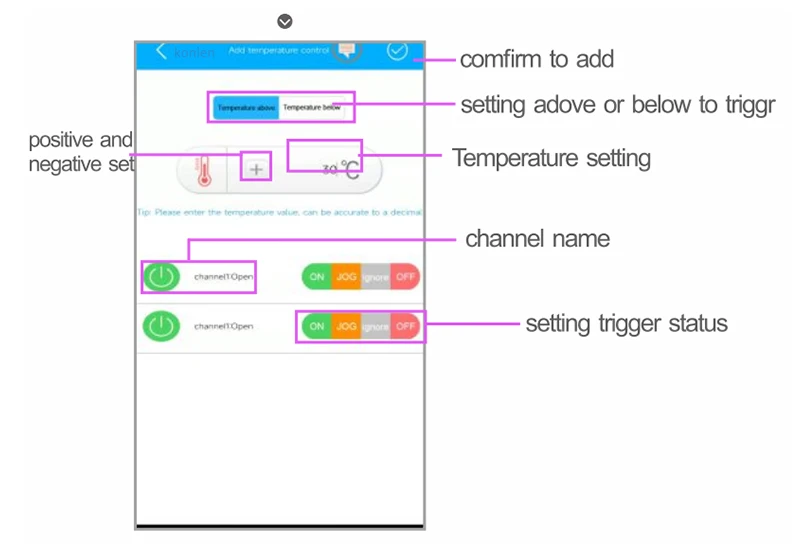

3. With temperature sensor linkage, it can monitor real time temperature, trigger relay switch on/off when temperature upper or lower than the setting limit and push temperature alarm message.

4. Inching the relay state in short time. It is suitable to control electric Door Gate / Garage door.

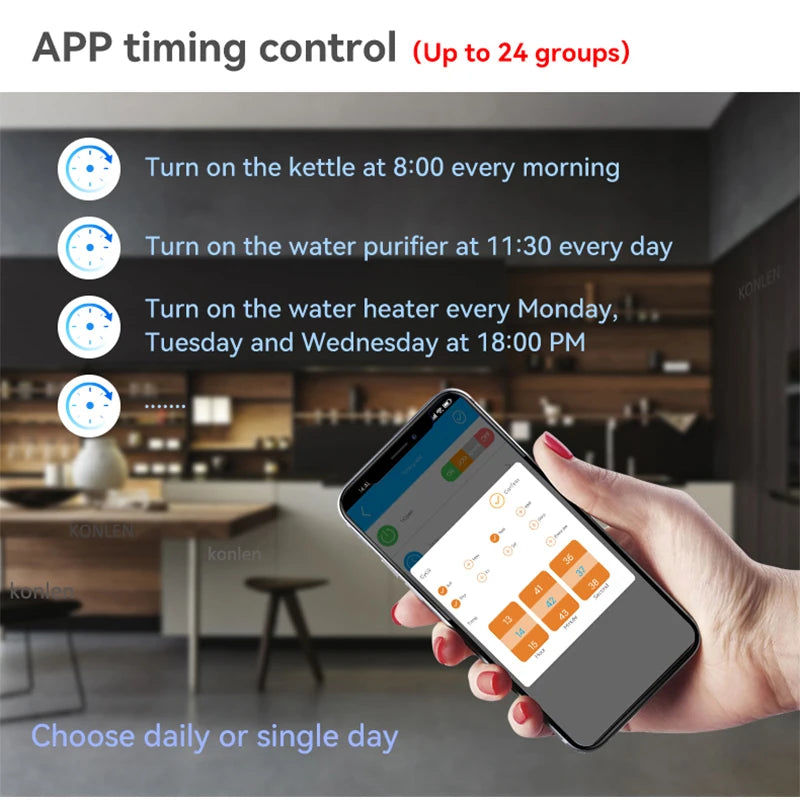

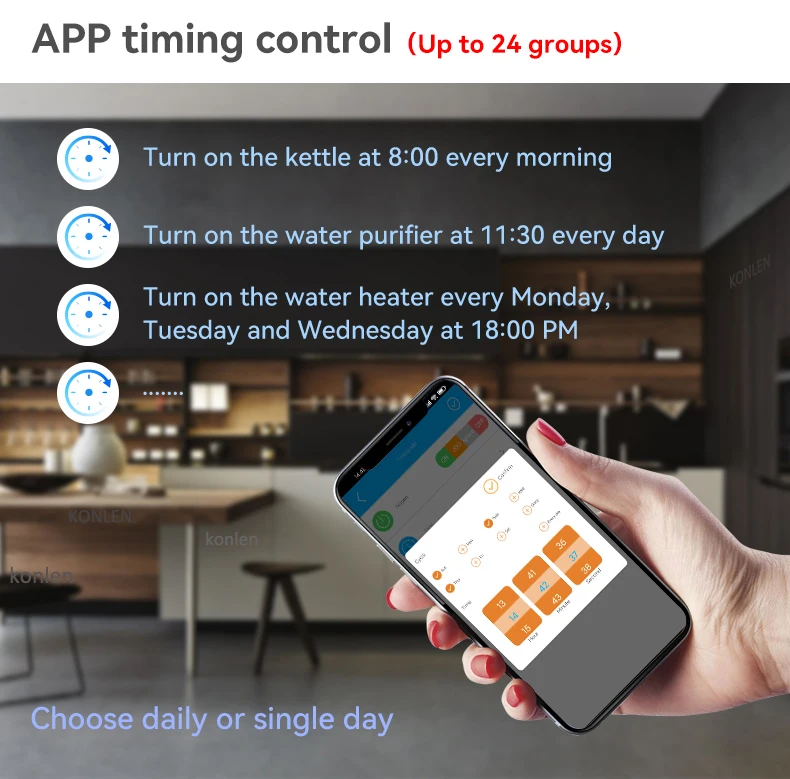

5. Timing Control

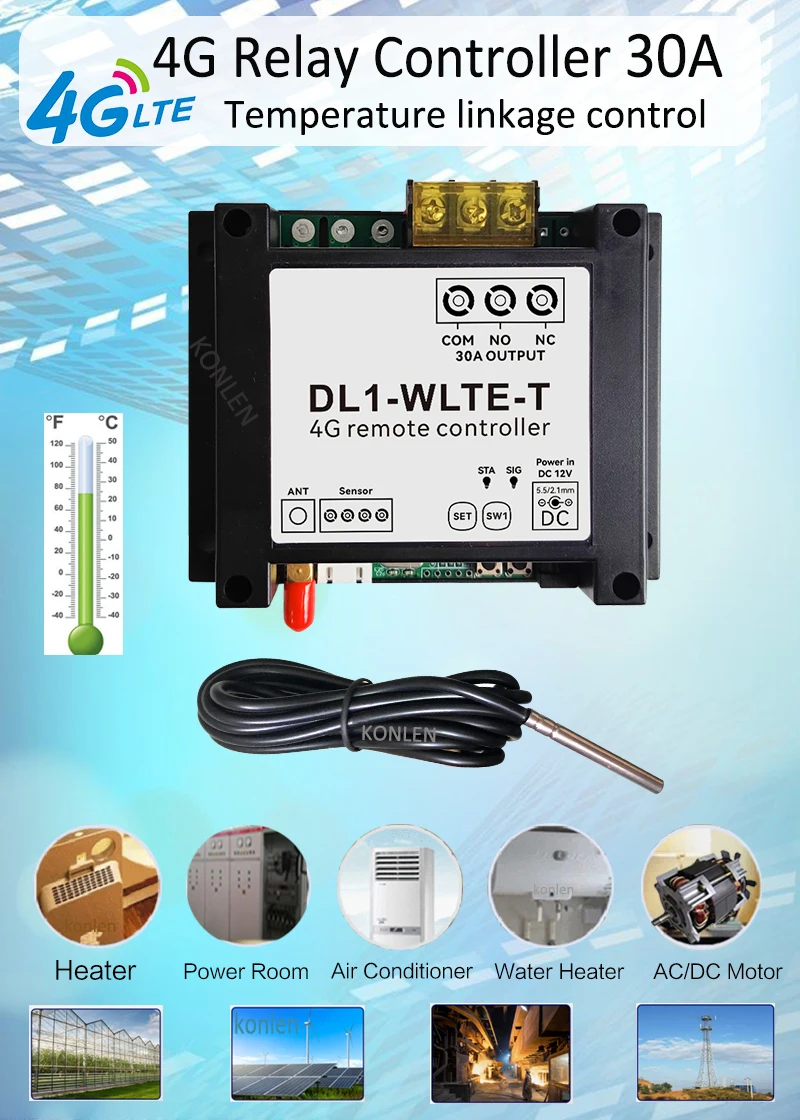

6. Application: it is widely applied to control all types of home appliance, door gate openers, AC Motor, Remote Base Station, Water Pump, Server, breeding, greenhouse etc. konlen

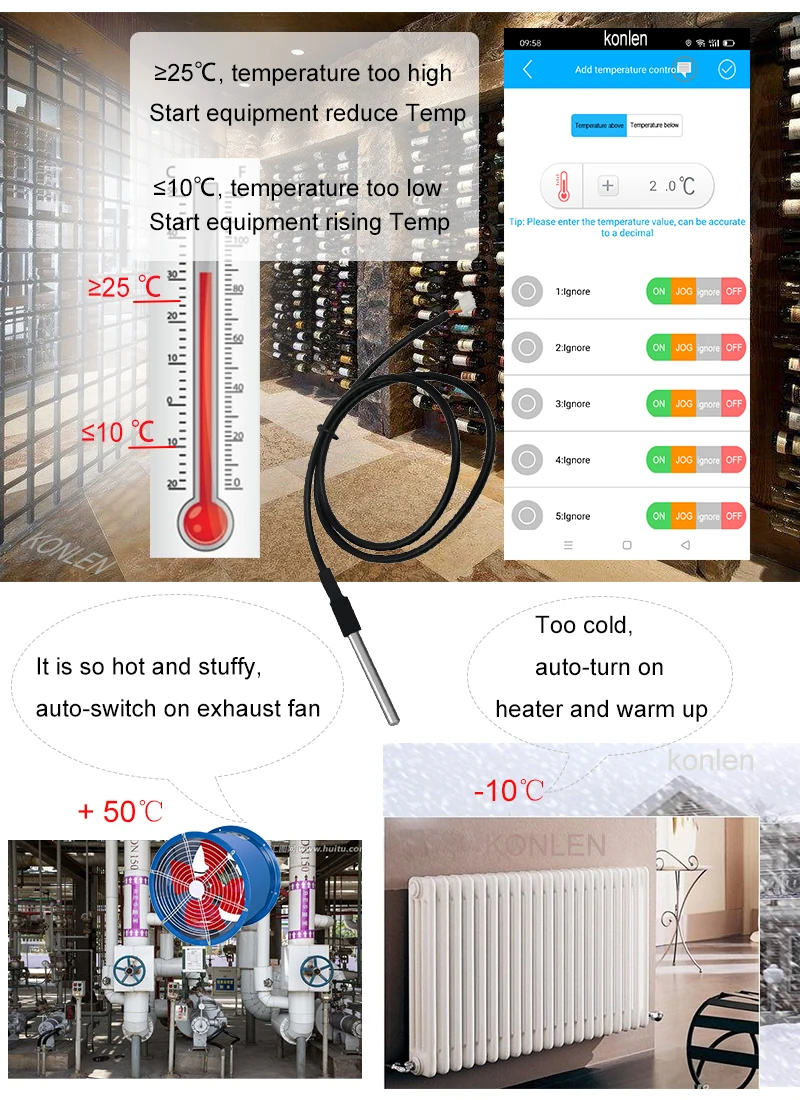

Upper or Lower temperature linkage relay on/off control : If the temperature is lower than (higher than ) the temperature you preset , the device will switch on/off relay output automatically as your setting . For example : you can set when the temperature is higher than 25 centi degree, turn on relay to start the cooler reducing room temperature. When temperature is lower than 10 centi degree, turn off relay. konlen

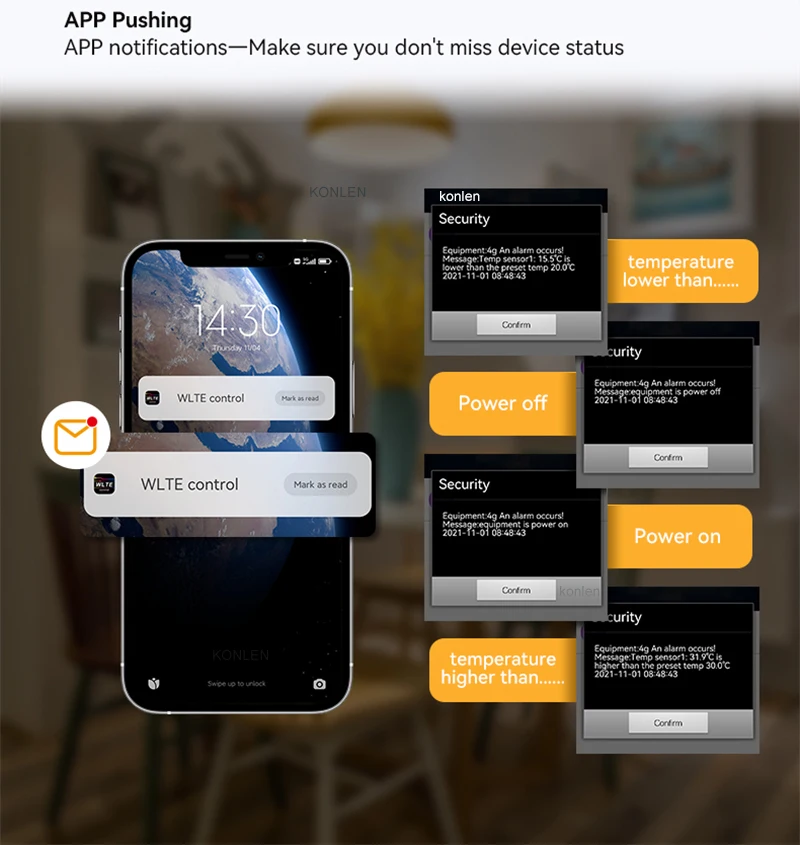

App pushing notification when temperature is upper or lower than the preset limit.

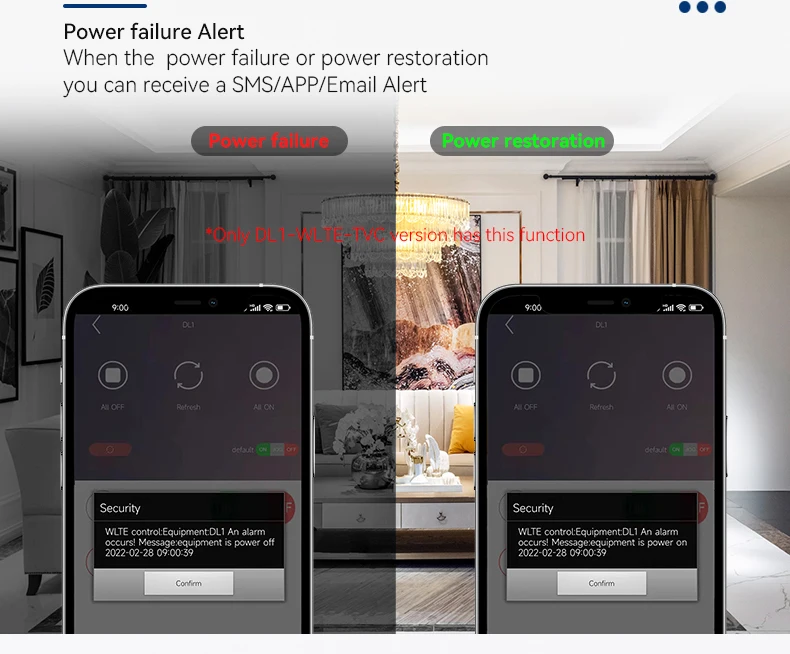

Note: Power failure alarm message is only available for TVC version ( DL1-WLTE-TVC)

E-mail pushing: Push notification to e-mail when temperature is upper or lower than the preset limit.

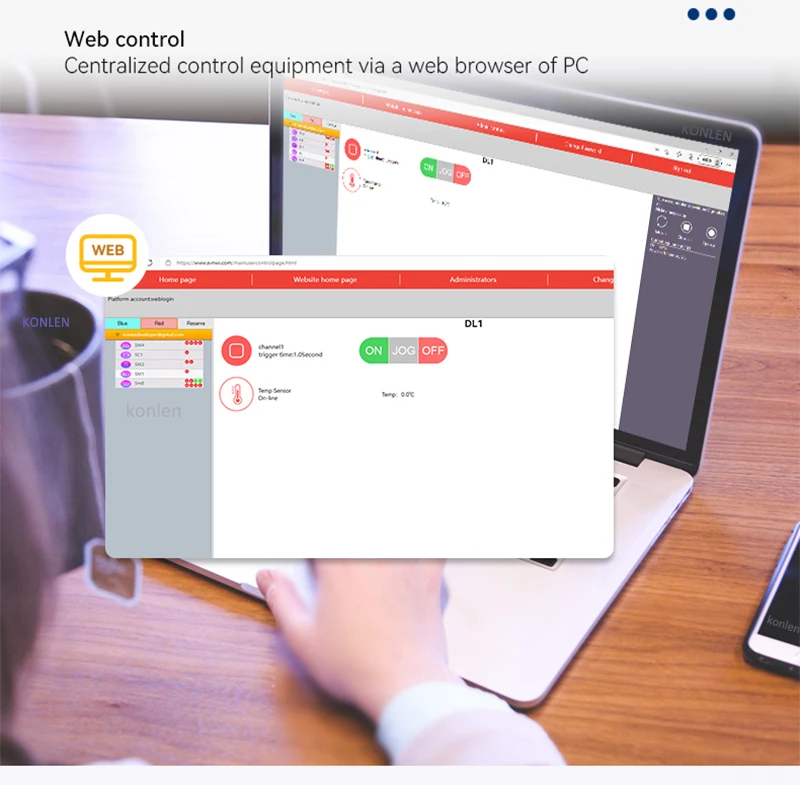

Web control ( in 4G data internet mode): Centralized control equipment via a web browser of PC.

User can use the web browser to send On/Off command to controller, but can't modify setting and push notification. Please do related settings on App.

Two working modes:

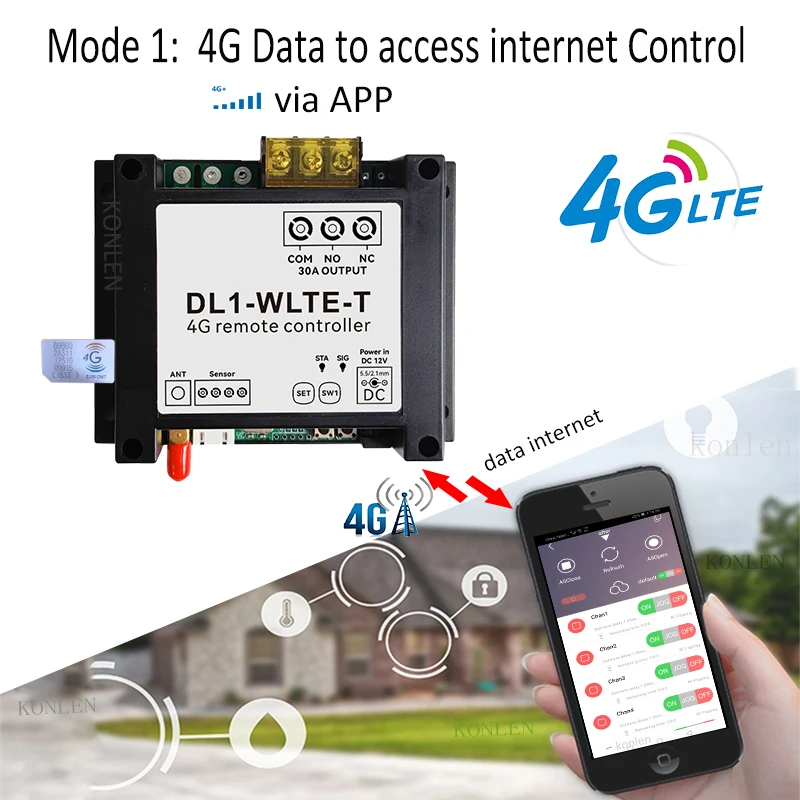

The controller works with 4G LTE network. There are two control modes： 1. 4G data internet control 2. SMS control. In 4G data mode, users can use App（WLTE Control）to control the KONLEN DL1 controller via 4G data internet. For some countries, users need set APN first before usage for activating the 4G data network. In SMS mode, users can control the device by SMS or call.

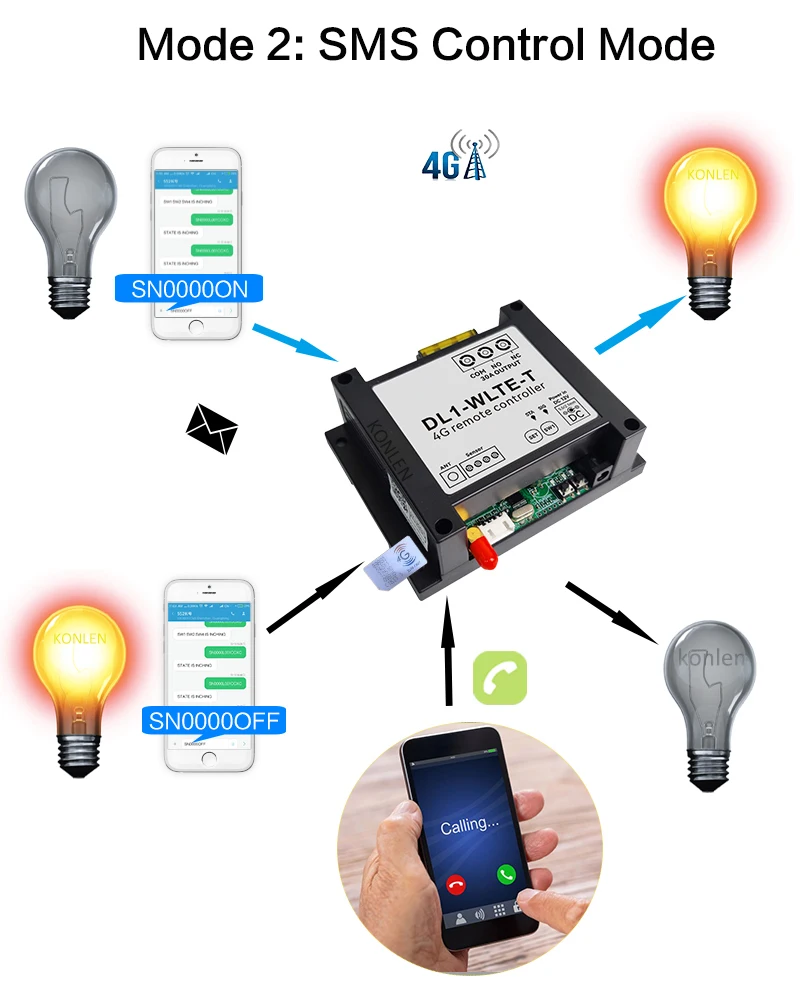

In SMS mode, users can control the device by SMS or call. The people who know SMS command and password can send SMS text to control the device.

Free Call Control: When the device detects the ring call, the relay 1 will change status, so call control is free of charge.

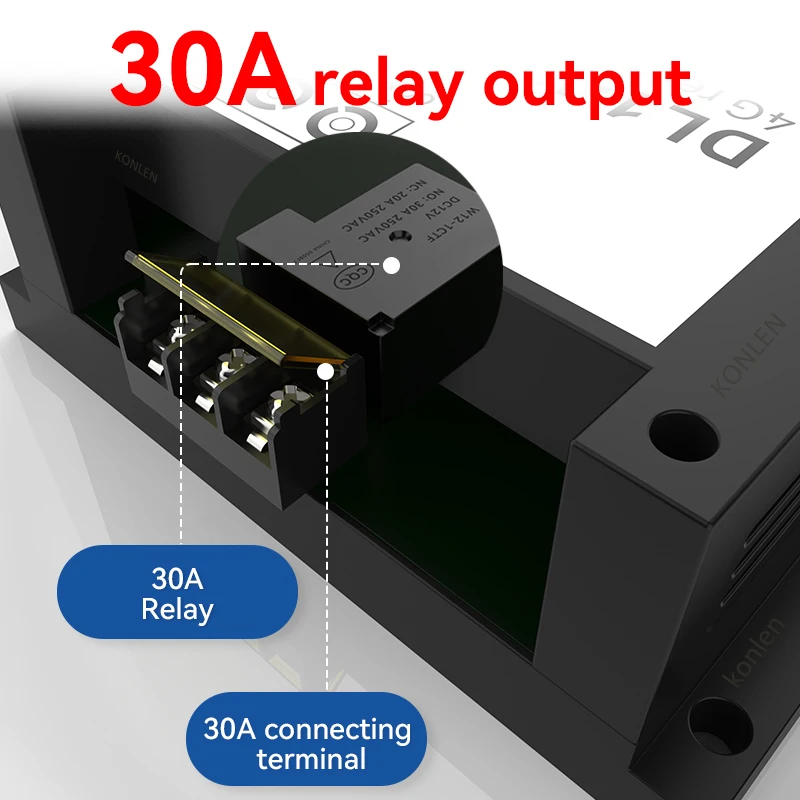

Relay output load: 30A/30VDC, 30A/250VAC, 30A/125VAC

Control relay output on/off remotely, no distance limit.

Inching the relay state in short time. It is suitable to control electric Door Gate / Garage door.

Scheduled/Timing Control

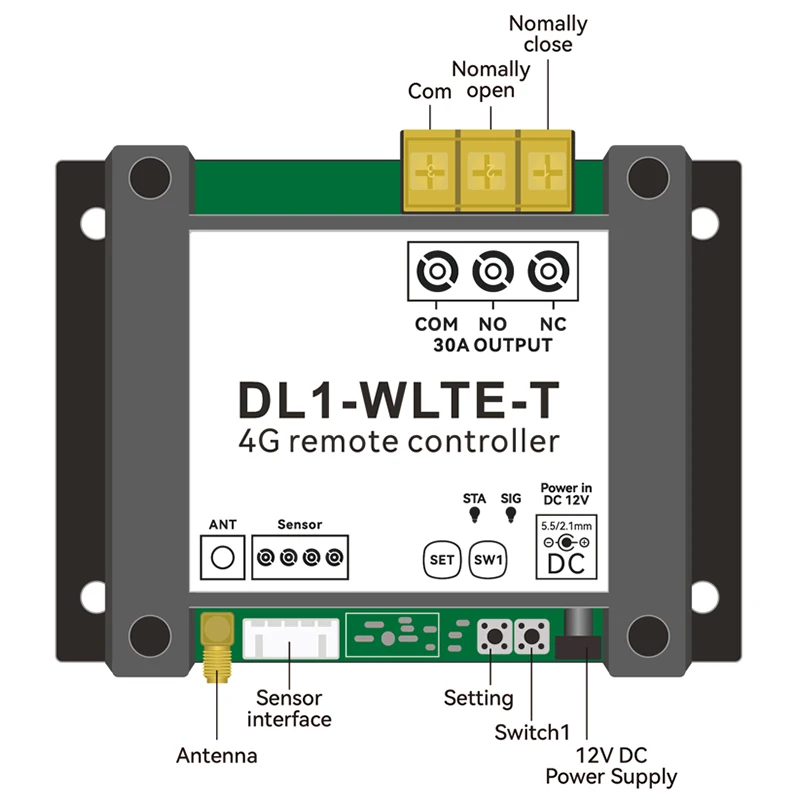

Specification:
DC power supply: Standard adapter DC12V 1A
Power consumption: Standby 12V/50mA, working Max 12V/200mA
4G frequency ( LTE-FDD): B1/B3/B5/B7/B8/B20
GSM frequency: 900/1800mhz
SIM interface: Standard SIM card
Antenna interface: Standard SMA interface
Temperature sensor interface: 1 sensor port
Temperature detection range: -40℃ - 120℃
Relay output: 1 chanel, 30A/30VDC, 30A/250VAC, 30A/125VAC
Output logic: Normally open and normally closed

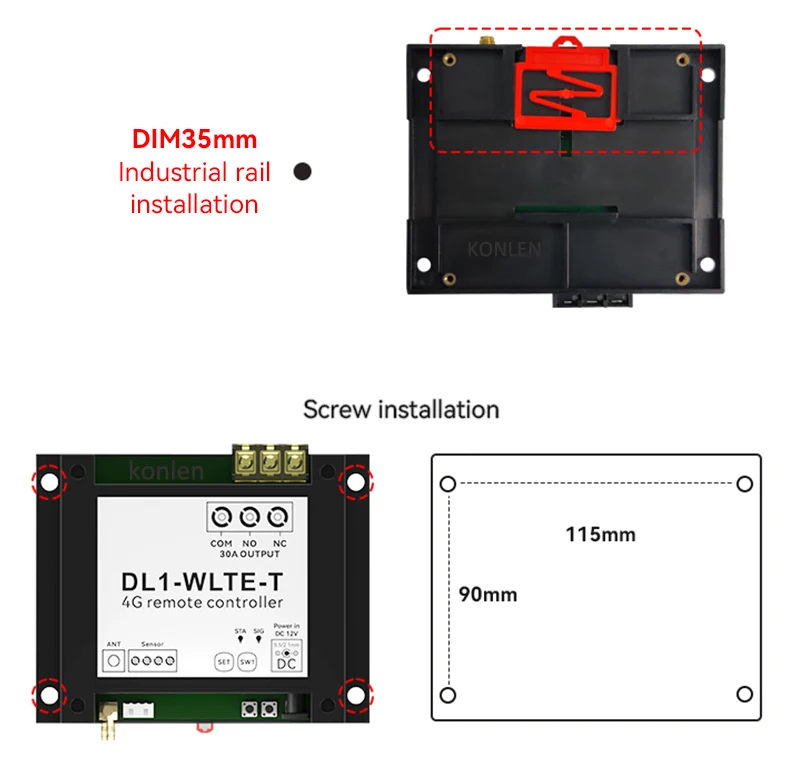

Shell size: 115mm x 90mm x 40mm
Box size: 145mm x 127mm x 45mm
Two version optional: DL1-WLTE-T (T version) and DL1-WLTE-TVC (TVC version)
T version without power failure message alert.
TVC version add the function of power failure message alert.
