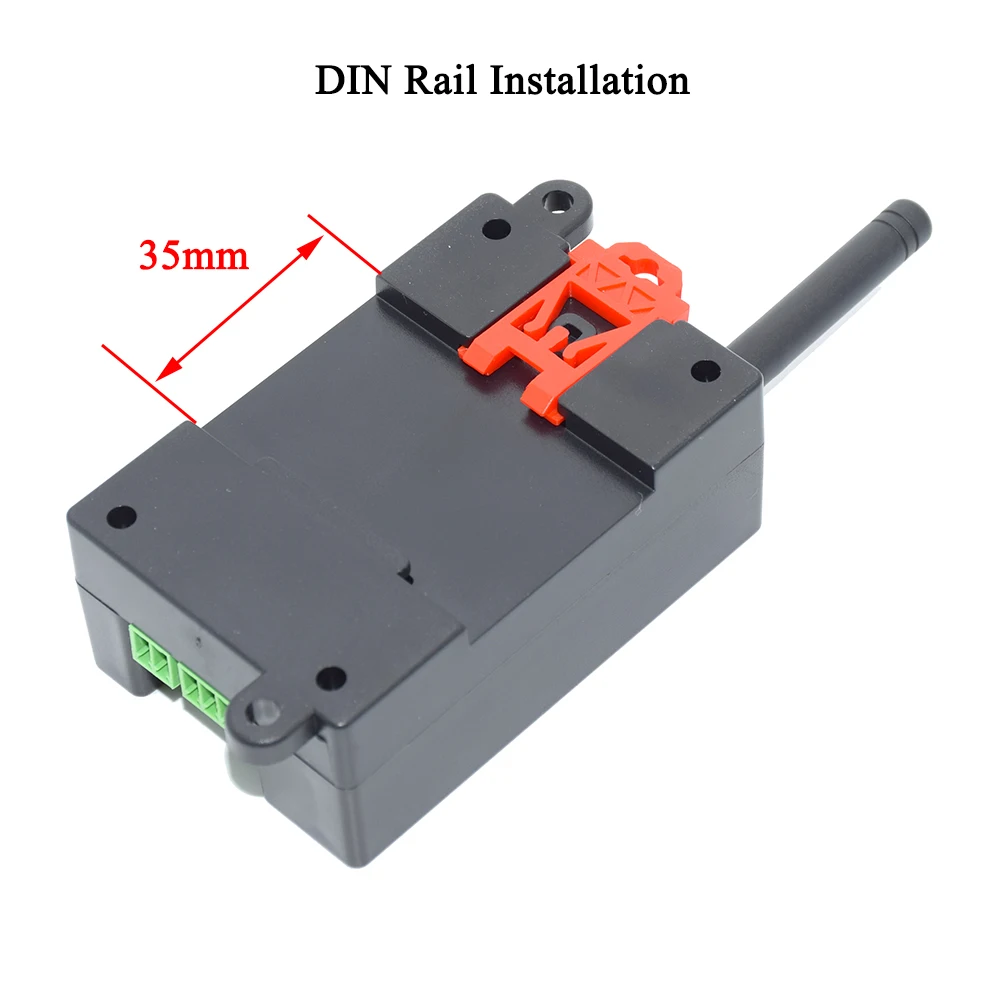

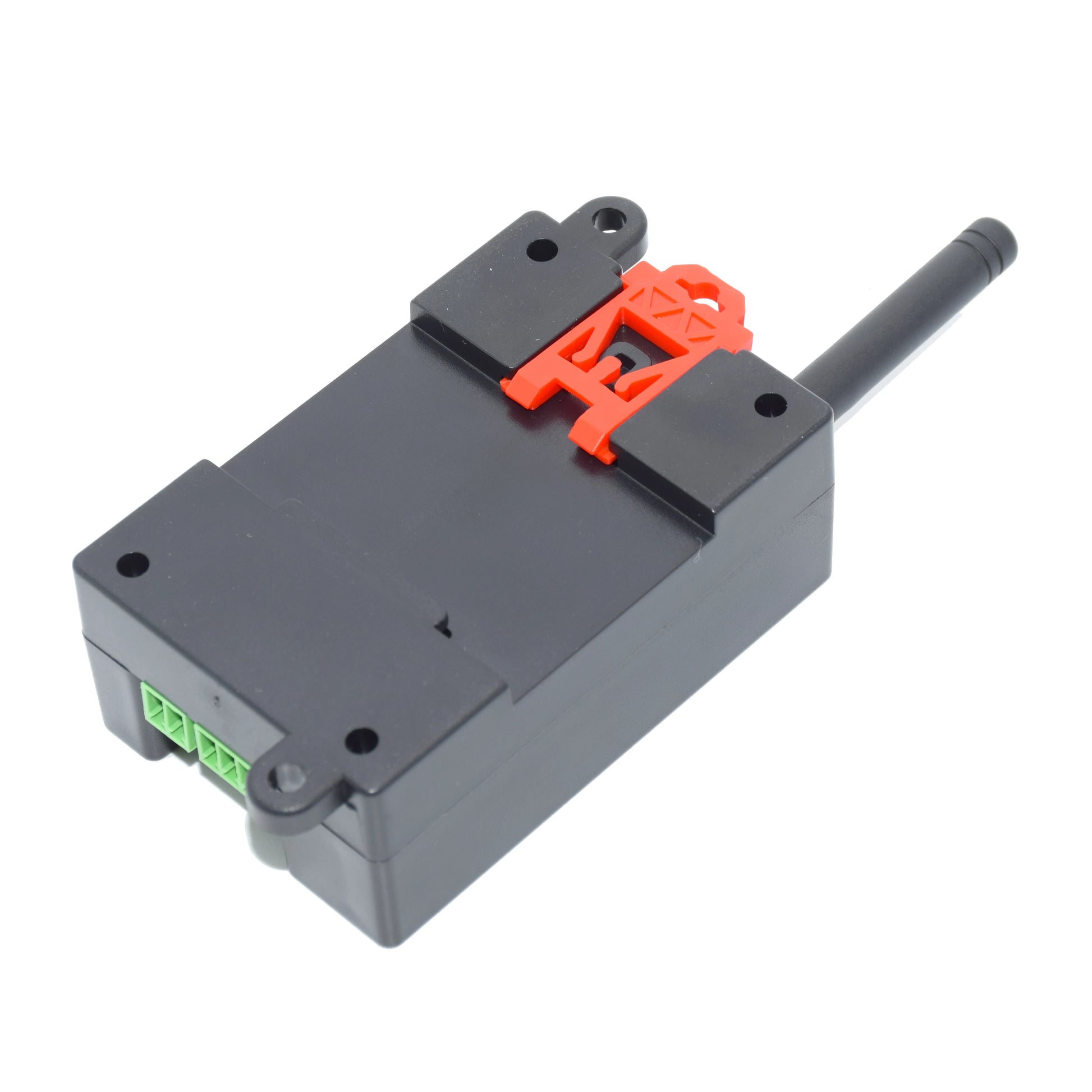

4G LTE 2G GSM SMS Smart Remote Relay Switch Controller Standard DIN-rail Mounting Gate Opener
4G LTE 2G GSM SMS Smart Remote Relay Switch Controller Standard DIN-rail Mounting Gate Opener
Couldn't load pickup availability
Attention:

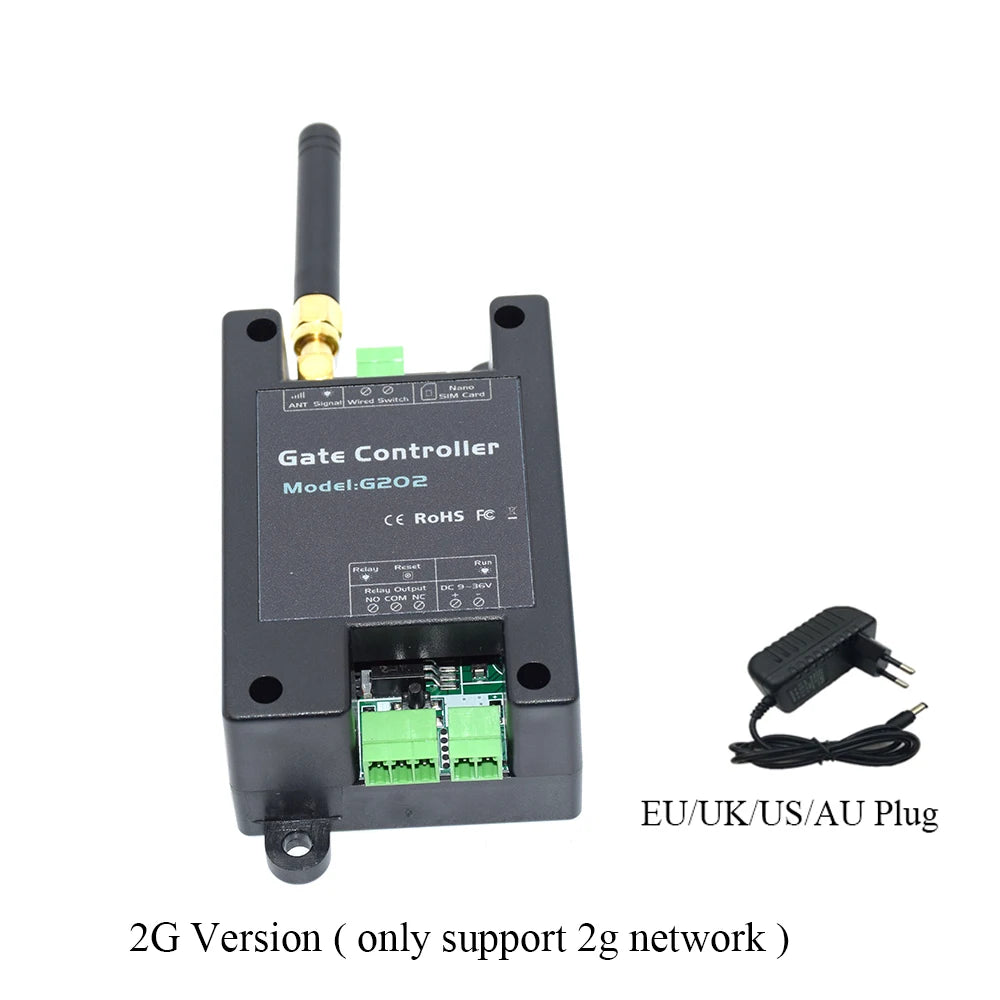

1, This device only support 2G/4G, don't support 3G.
2, AU version : Suitable for New Zealand, Australia, Mexico, Columbia, Peru, Brazil, Chile, Argentina， Paraguay， Uruguay， Bolivia， Ecuador, Venezuela, Guatemala, El Salvador, Honduras, Costa Rica, Dominican Republic
3，EU version : Suitable for another country

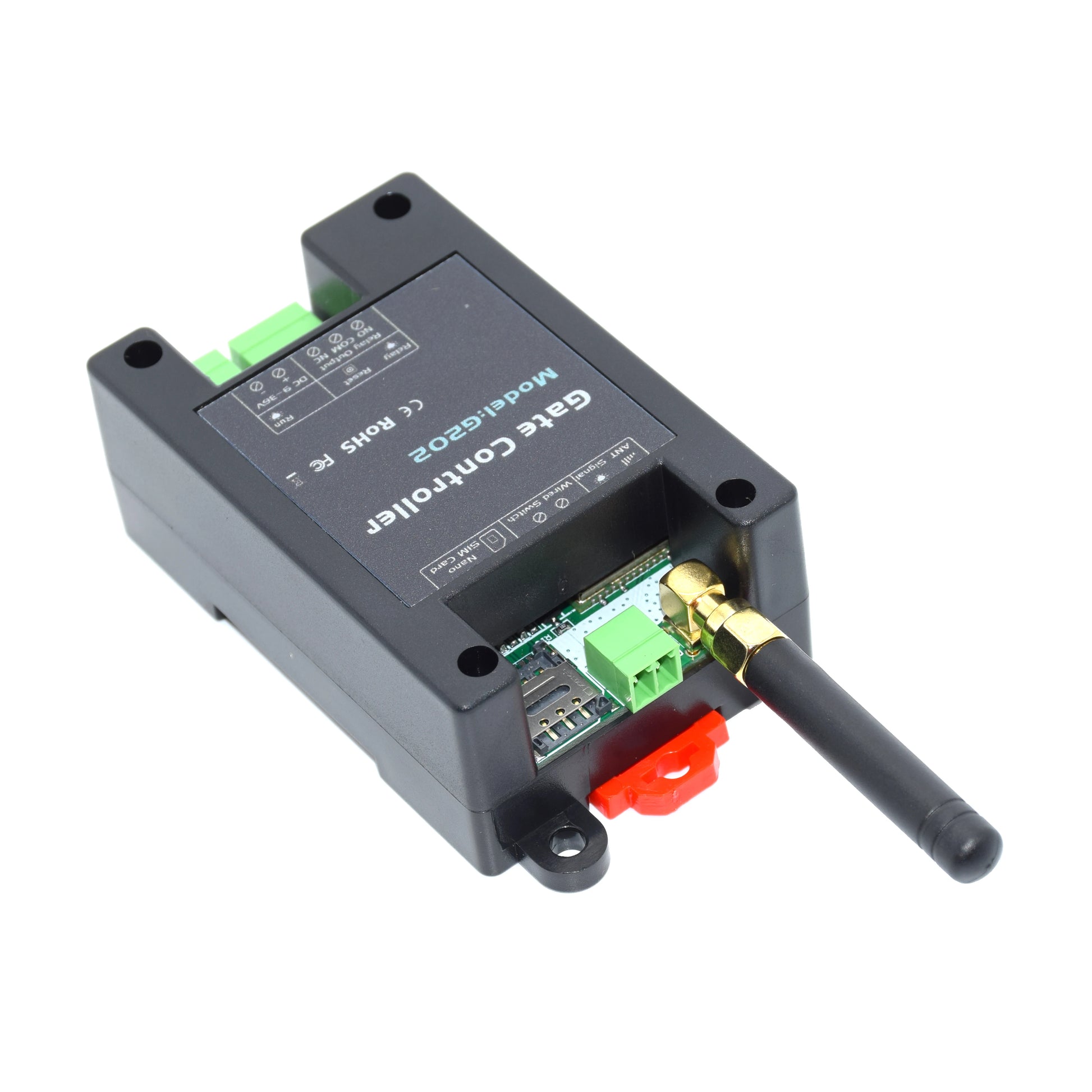

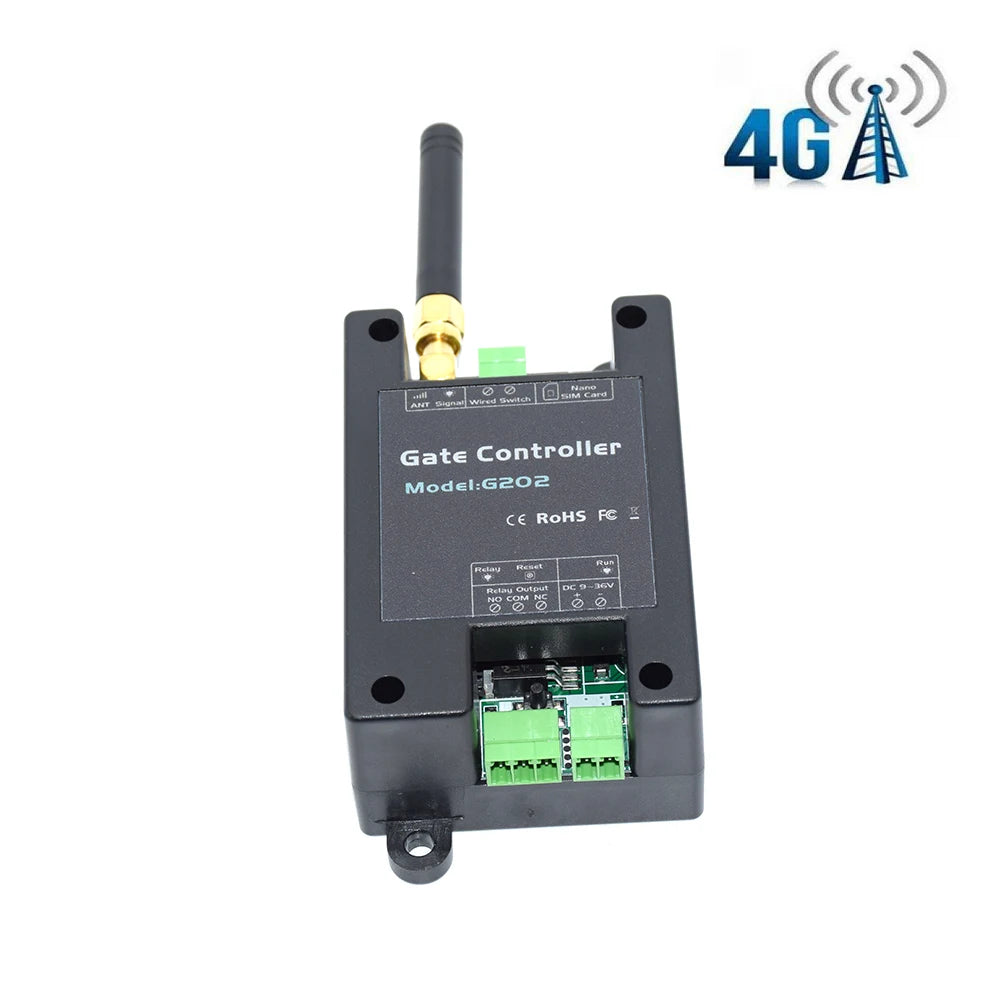

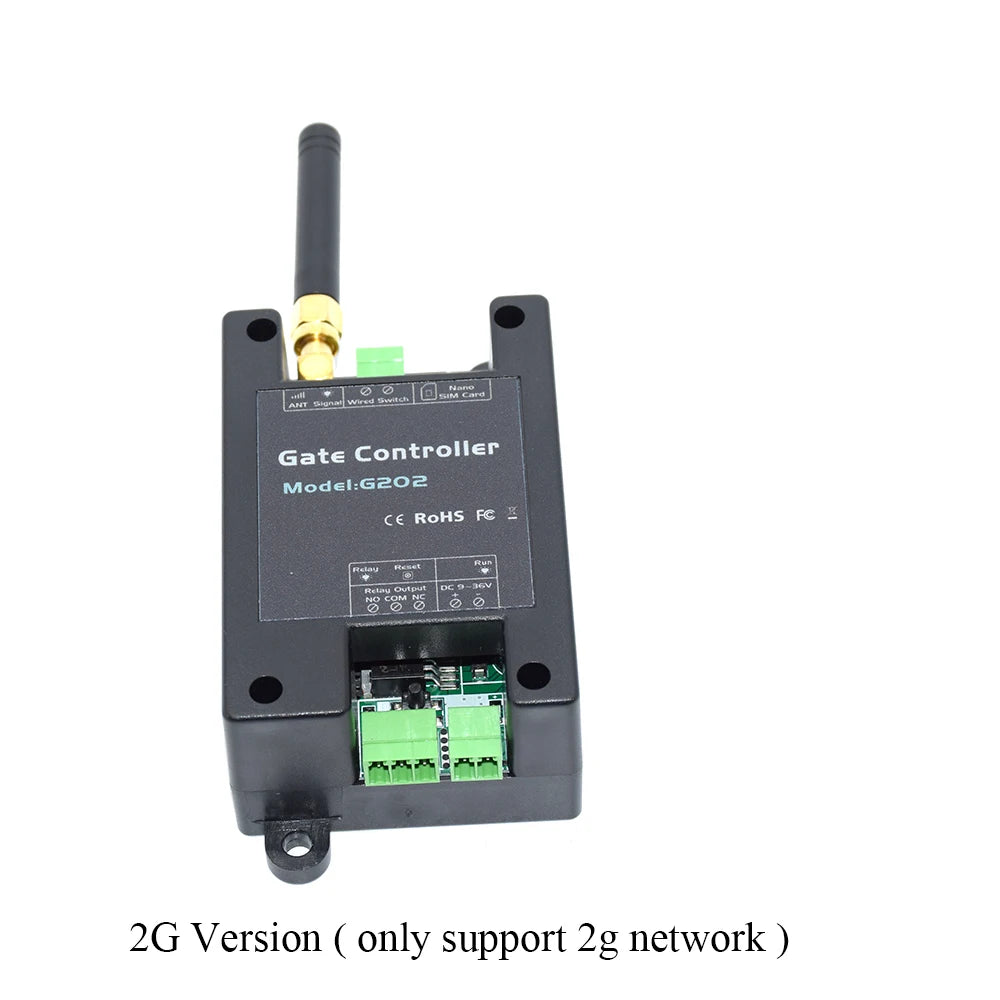

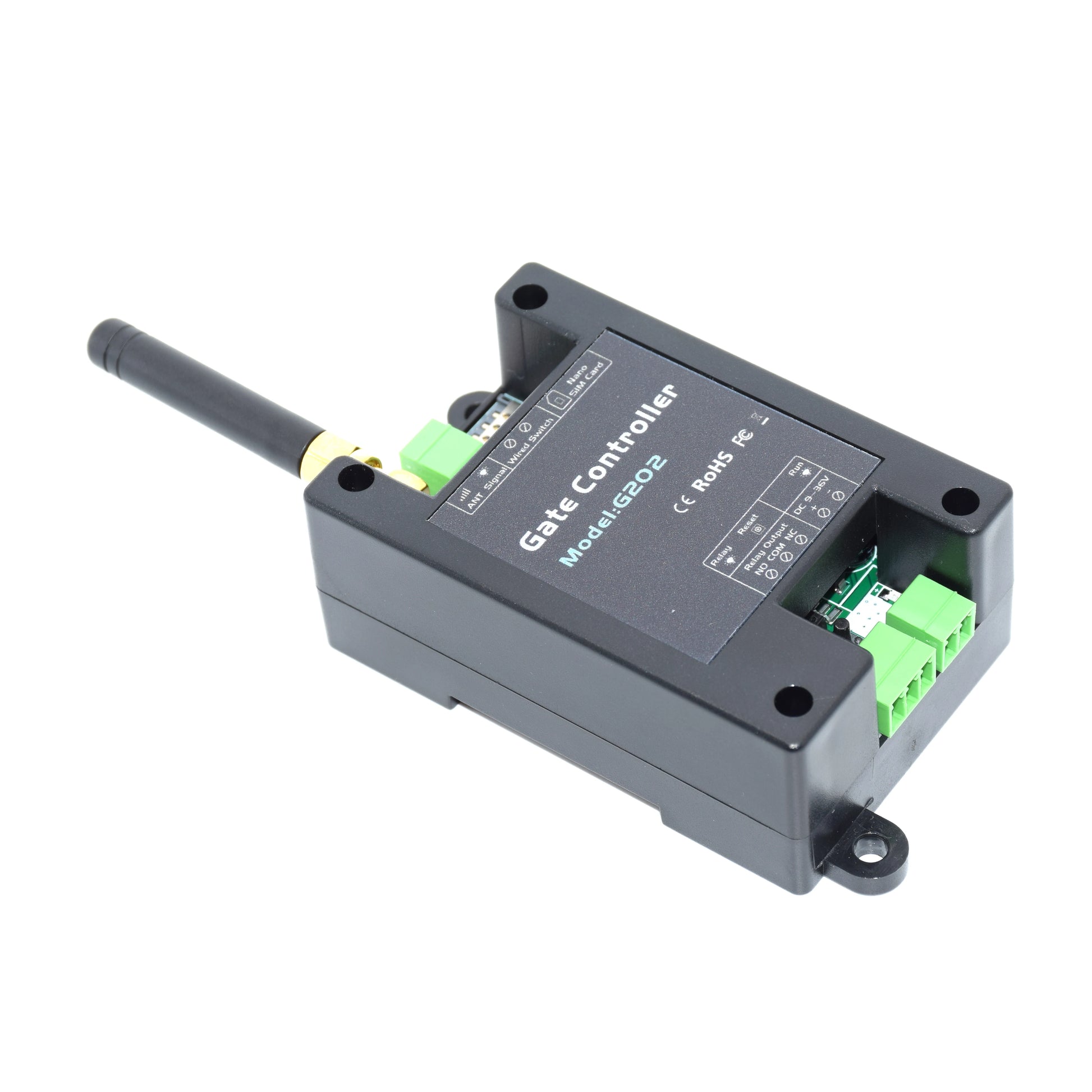

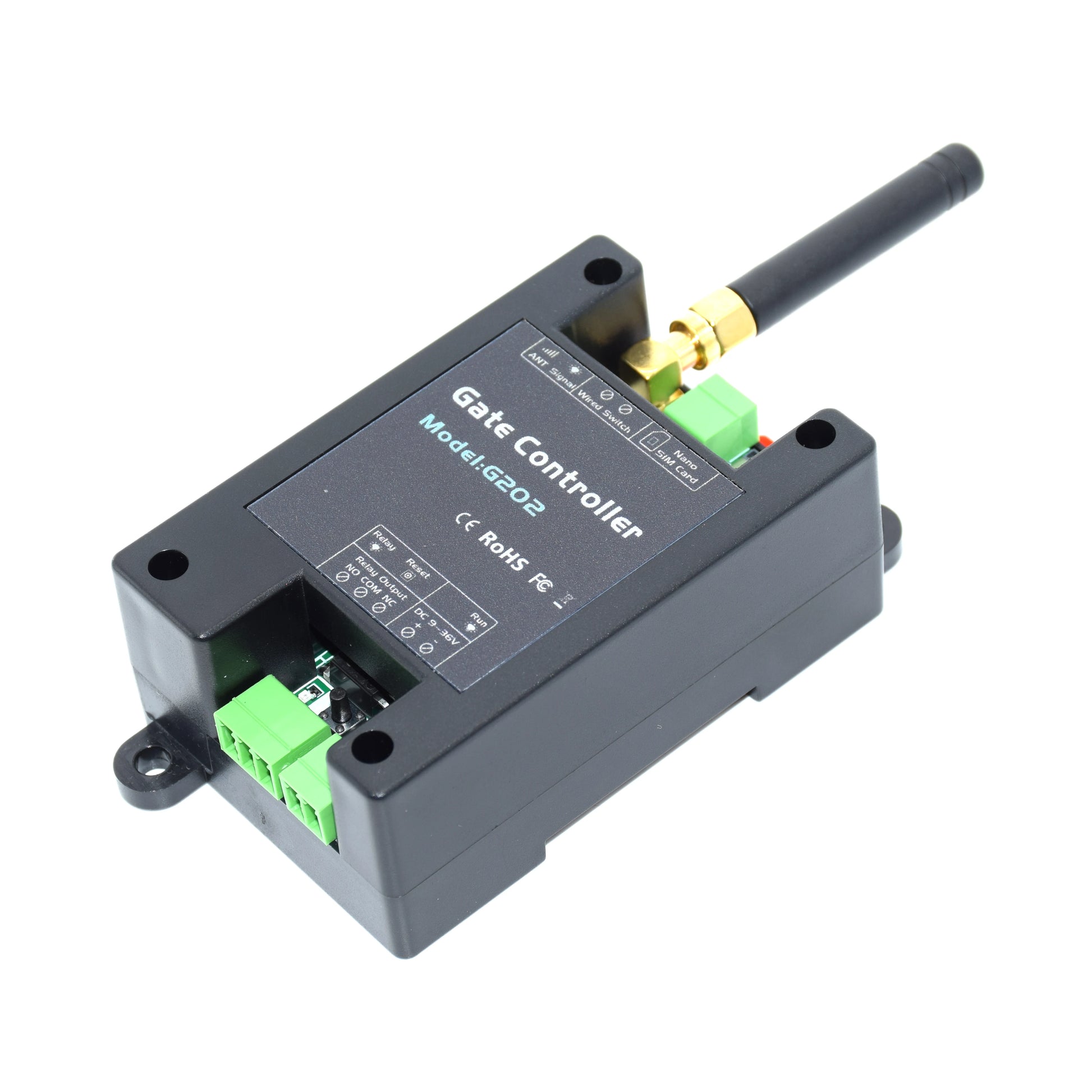

The GSM/4G Gate Opener G202 is a very simple device which can be used for authorized door access, controlling gates, switching of remote equipment, car parking systems. Actually the GSM/4G Gate Opener G202 can be used in places which requires turning ON/OFF your system, machines, equipment remotely with a FREE call from your mobile phone and protect your assets.
Just dial from Authorized User number then the Barrier and doors are opened, or the machine are turn on or off by the GSM/4G Gate Opener. There are no call costs, the GSM/4G Gate Opener rejects the call from authorized number then carries out the turn ON/OFF action.
Technical specifications
Rated Voltage: DC 9V~36V/1A
Working temperature: -10℃～+60℃
Storage temperature: -20℃～+60℃
Relative humidity: 10-90%, No condensation
Work frequency:

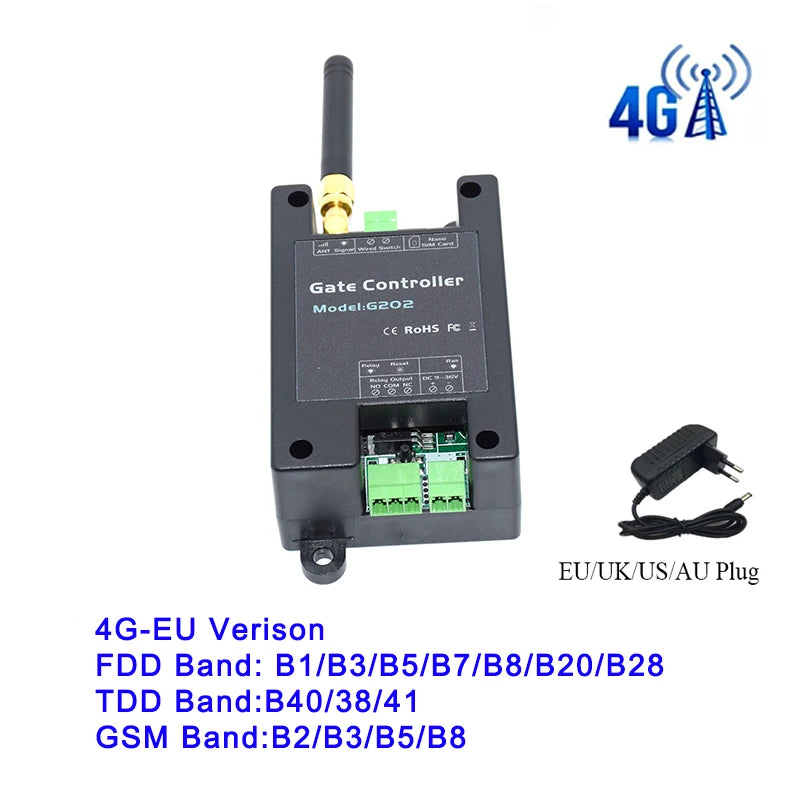

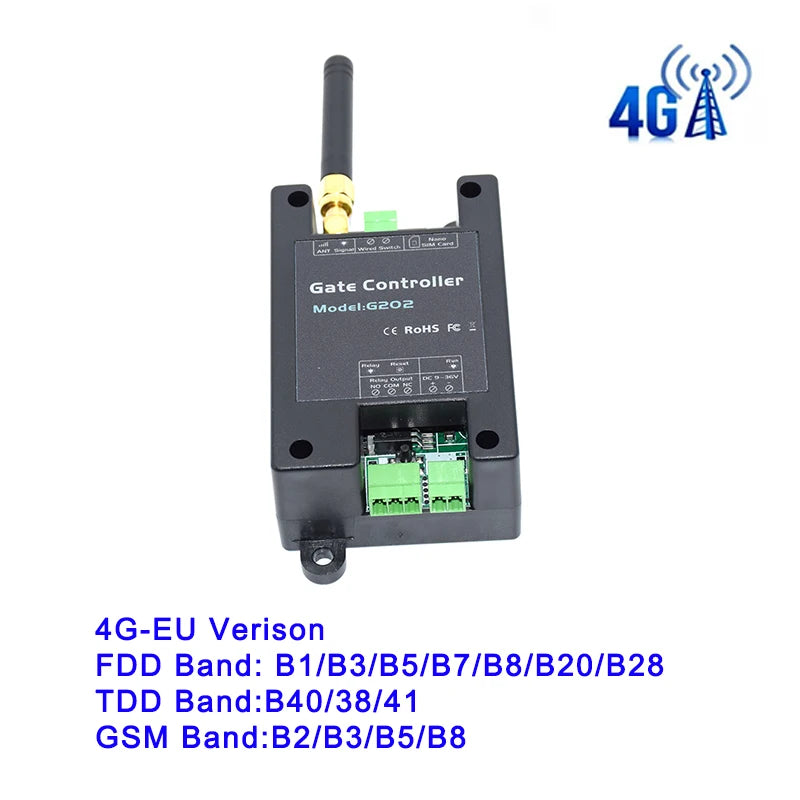

4G-EU:GSM：B2/B3/B5/B8 TDD：B40/38/41 FDD：B1/B3/B5/B7/B8/B20/B28

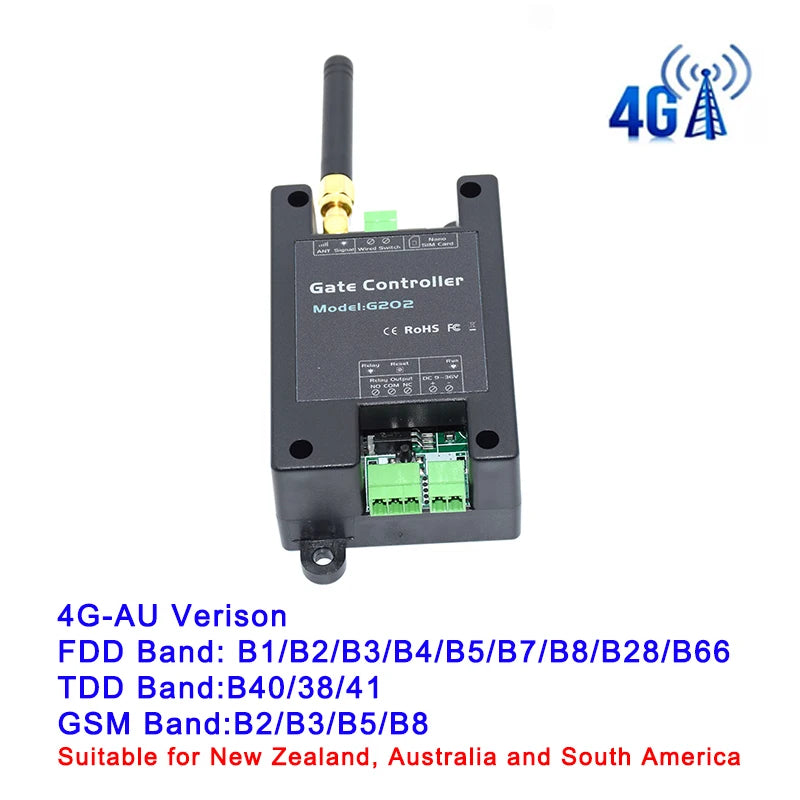

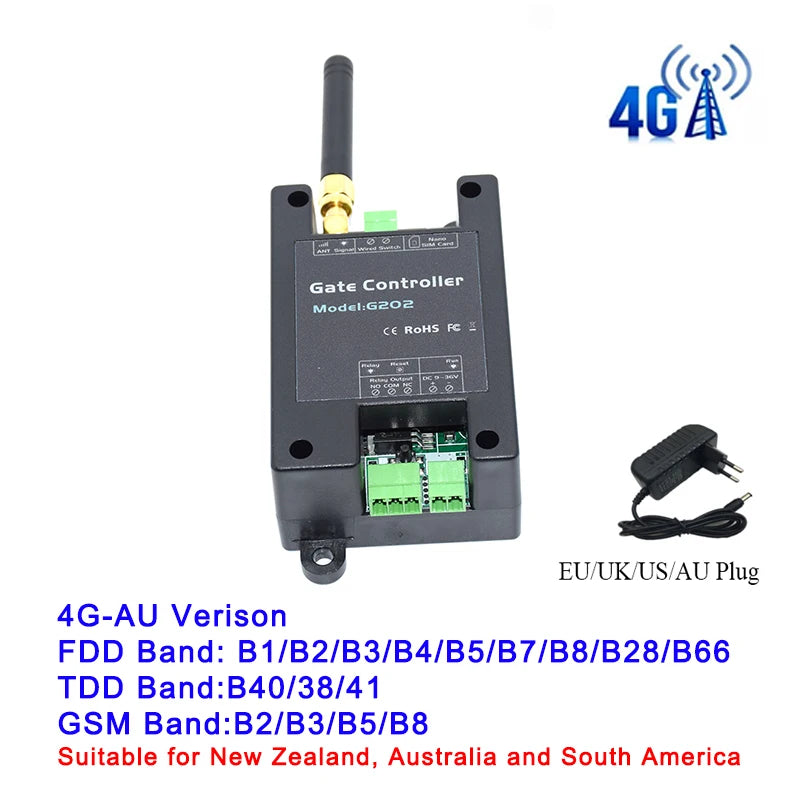

4G-AU:GSM：B2/B3/B5/B8 TDD：B40/38/41 FDD：B1/B2/B3/B4/B5/B7/B8/B28/B66
Communication protocol: GSM/4G PHASE 2/2+ (include data service)
Related Voltage of the Output Relay: 3A/240V AC
Relay Time: 2G version : 0~999s, 4G version: 0~999999s
SIM Card： Nano type, 3V
Antenna: 50 Ω SMA
Wired Switch: Supports
Features
1.No call charges. The GSM/4G Gate Opener rejects the call from authorized number, then the relay will turn
ON/OFF on the first ring;
2.It is no longer traditional to open the door, but it is more interesting to shake the mobile phone to unlock the door.
3.Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);
4.Secure - Using caller ID for identification, unknown callers are ignored;
5.Can be operated from anywhere, no distance limit;
6.Add or remove users by SMS Text command;
7.No need to provide a remote control for different users;
8.Up to 200 authorized phone numbers can be configured;
9.One output with relay （3A/240VAC）for connecting the switch of the door or machines;
10.The relay action will return a SMS confirmation to the owner, this function is editable by user;
11.Based on GSM/4G Network, applied to many applications.
