16A EU GSM Power Socket Remote Control Switch Relay Smart Intelligent Sockets Outlet 3000W SMS Call Android App Home Automation
16A EU GSM Power Socket Remote Control Switch Relay Smart Intelligent Sockets Outlet 3000W SMS Call Android App Home Automation
Regular price
$178.05 USD
Regular price
$213.66 USD
Sale price
$178.05 USD
Unit price
per
Taxes included.
Couldn't load pickup availability
Maybe you also like
Name : 16A EU GSM Power Socket Remote Control Relay outlet Switch SMS Call Android IOS APP for Garage Door Gate Opener Light Curtain Motor Pump Home Automation
Model No. KL-SC1-GSMV GSM Remote Control Power Socket
Note: If you want to plug in high power device to the socket, please make sure your home wall socket can also load 16A
1) 16A Max, Support High-power Household Electric Appliances
2) SMS/APP/Free Call Control Relay On or Off via 2G GSM Network
3) SMS/APP/Free Call Control Electric Door Gate from on to off (0.5 to 9 seconds), then back to on, or off to on (0.5 to 9 seconds), then back to off via T and XL Command.
4) Timed control other electric devices from on to off (001 to 255 minutes), then back to on or off to on (from 001 to 255 minutes), then back to off via SMS L Comand
2) SMS/APP/Free Call Control Relay On or Off via 2G GSM Network
3) SMS/APP/Free Call Control Electric Door Gate from on to off (0.5 to 9 seconds), then back to on, or off to on (0.5 to 9 seconds), then back to off via T and XL Command.
4) Timed control other electric devices from on to off (001 to 255 minutes), then back to on or off to on (from 001 to 255 minutes), then back to off via SMS L Comand
Specification:
Communication: Based on GSM Network
GSM Frequency: GSM850/900/1800/1900MHZ
Rated Current: 16A Max
Rated Power: 3000W
Rated Voltage: 110V to 250V AC

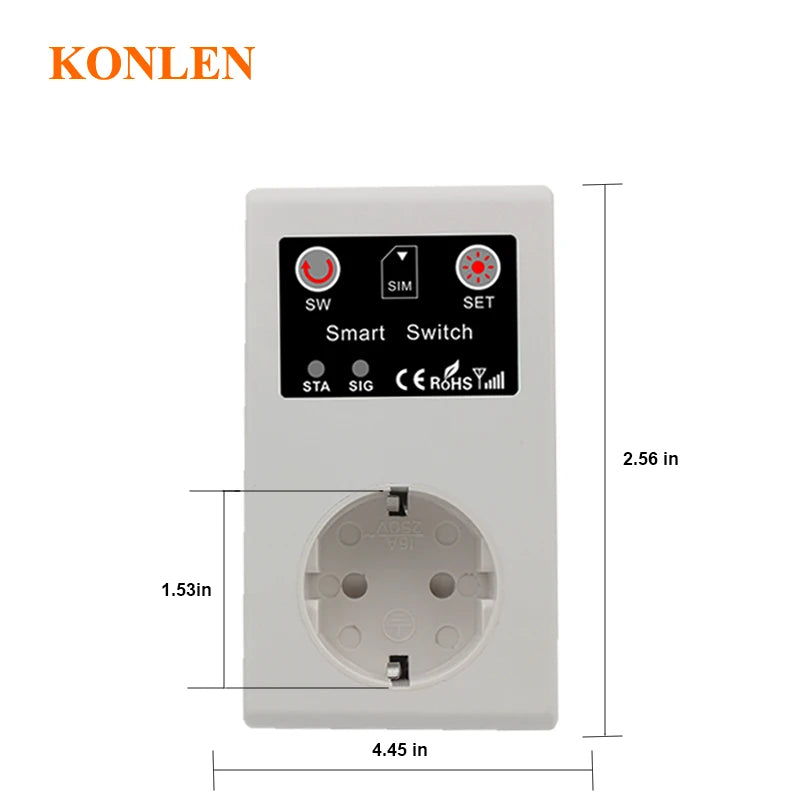

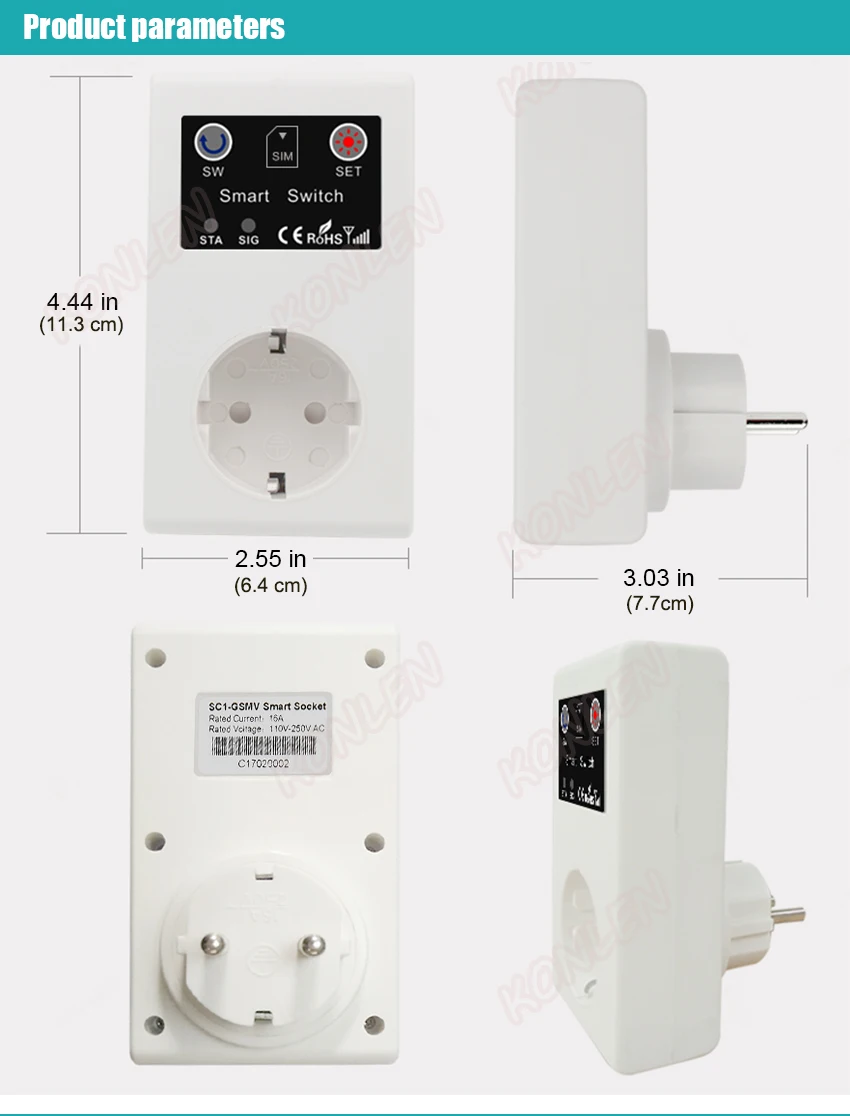

Dimension: 113mm x 65mm x 77mm ( 4.44 in x 2.55 in x 3.03 in)
Working Humidity: Less than 65%
Working Temperature: -10 to +55 Centi Degree
Power Socket and Plug: EU German Standard
GSM Frequency: GSM850/900/1800/1900MHZ
Rated Current: 16A Max
Rated Power: 3000W
Rated Voltage: 110V to 250V AC
Dimension: 113mm x 65mm x 77mm ( 4.44 in x 2.55 in x 3.03 in)
Working Humidity: Less than 65%
Working Temperature: -10 to +55 Centi Degree
Power Socket and Plug: EU German Standard
16A Max, Support to control High-power Household Electric Appliances (light, air-conditioner, warmer, heater, TV, Stereos etc), and automatic door gate openers, AC Motor, Remote Base Station, PBX Switchboard, Water Pump, Server etc.
Long Inching: Timing control from 001 to 240 Minutes via L Commands
L Command:
SMS Text: SN + 4 digits of password(0000) + L + 3 digits of time (from 001 to 240 minutes)
For example. a. Send SMS: SN0000L005
on-----off 5 minutes-----on;
off-----on 5 minutes-----off
If the original STATE LED on, it will be off for 5 minutes after the command, then back to be on automatically.
If the original STATE LED off, it will be on for 5 minutes after the command, then back to be off automatically.
b. Send SMS: SN0000L030 (on-----off 30 minutes-----on; off-----on 30 minutes-----off)
SMS Text: SN + 4 digits of password(0000) + L + 3 digits of time (from 001 to 240 minutes)
For example. a. Send SMS: SN0000L005
on-----off 5 minutes-----on;
off-----on 5 minutes-----off
If the original STATE LED on, it will be off for 5 minutes after the command, then back to be on automatically.
If the original STATE LED off, it will be on for 5 minutes after the command, then back to be off automatically.
b. Send SMS: SN0000L030 (on-----off 30 minutes-----on; off-----on 30 minutes-----off)
Short Inching (from 0 to 9 seconds): Control Door Gate Opener via T Command
T Command:
SMS Text: SN + 4 digits of password(0000) +T + inching time (0 to 9)
0 means 0.5 second, 1-9 means 1 to 9seconds
For example: a. Send SMS: SN0000T0
on-----off 0.5 seconds-----on;
off-----on 0.5 seconds------off
If the original STATE LED on, it will be off for 0.5 seconds after command, then back to be on automatically.
If the original STATE LED off, it will be on for 0.5 seconds, then back to be off automatically
b. Send SMS: SN0000T3 (on-----off 3 seconds-----on; off-----on 3 seconds------off)
T Command:
SMS Text: SN + 4 digits of password(0000) +T + inching time (0 to 9)
0 means 0.5 second, 1-9 means 1 to 9seconds
For example: a. Send SMS: SN0000T0
on-----off 0.5 seconds-----on;
off-----on 0.5 seconds------off
If the original STATE LED on, it will be off for 0.5 seconds after command, then back to be on automatically.
If the original STATE LED off, it will be on for 0.5 seconds, then back to be off automatically
b. Send SMS: SN0000T3 (on-----off 3 seconds-----on; off-----on 3 seconds------off)

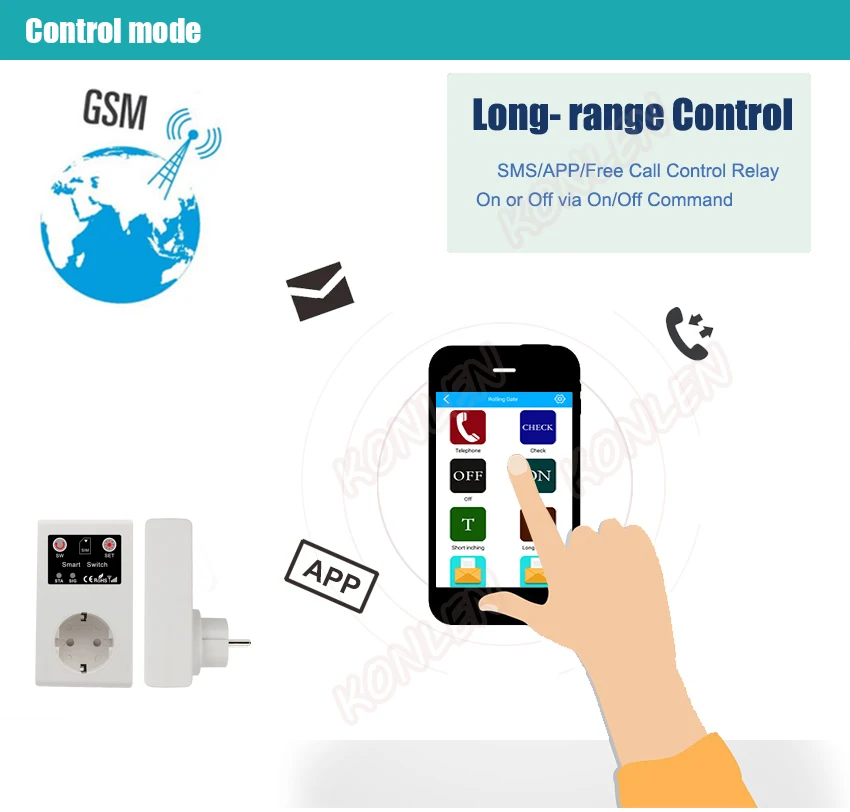

Mobile App Control anywhere anytime based on GSM Network
Other features:
1. With password protection
2. Can set 5 groups of control master numbers
3. SMS control(ON command, Off Command, T Command)
1)ON Command: turn the relay state to ON
SMS Text: SN+Password+ON
2)Off Command (Turn the relay state to off
SMS Text: SN+Password+OFF
4. Free Call to control
User can control the GSM controller by dial the SIM card number of GSM controller. The user may hear" You can't answer the phone call, beep, beep.......tone etc", which mean changing the relay state successfully.
If the controller connected, it will change to be disconnected state after a call.
If the original state is off, it will change to be connected state after a call.

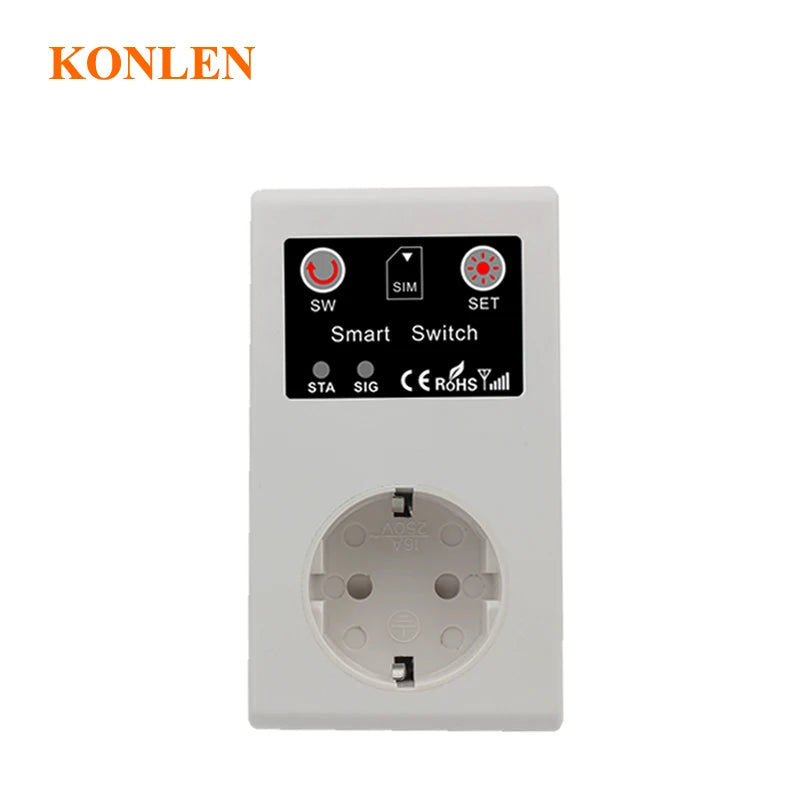

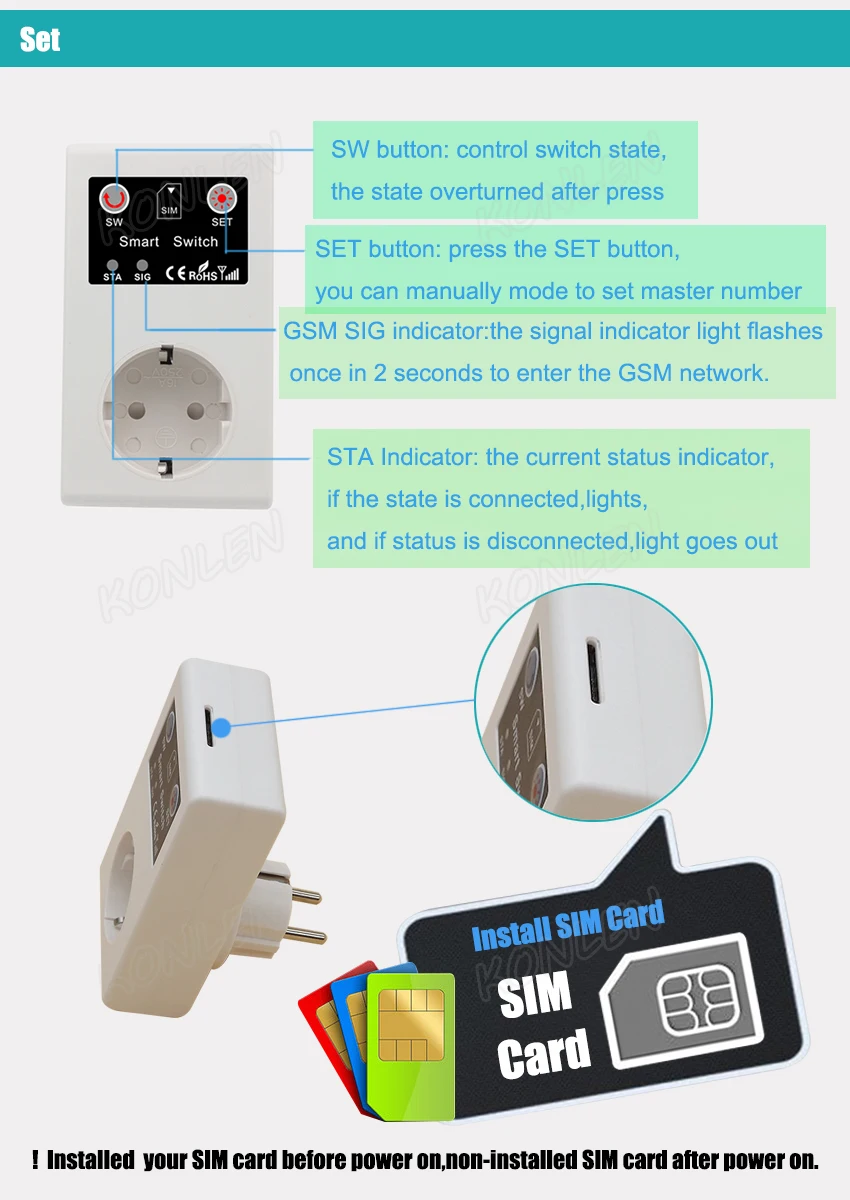

5. Button Control
The controller state will be changed when you press the SW button at side of controller.
If the controller connected, it will change to be disconnected state.
If the original state is off, it will change to be connected state.
6. User can send sms to check the on/off state
SMS text: SN+Password+CHECK
7. With Power off memory Function
1. With password protection
2. Can set 5 groups of control master numbers
3. SMS control(ON command, Off Command, T Command)
1)ON Command: turn the relay state to ON
SMS Text: SN+Password+ON
2)Off Command (Turn the relay state to off
SMS Text: SN+Password+OFF
4. Free Call to control
User can control the GSM controller by dial the SIM card number of GSM controller. The user may hear" You can't answer the phone call, beep, beep.......tone etc", which mean changing the relay state successfully.
If the controller connected, it will change to be disconnected state after a call.
If the original state is off, it will change to be connected state after a call.
5. Button Control
The controller state will be changed when you press the SW button at side of controller.
If the controller connected, it will change to be disconnected state.
If the original state is off, it will change to be connected state.
6. User can send sms to check the on/off state
SMS text: SN+Password+CHECK
7. With Power off memory Function
Tips: If you want to plug in 16A device to the 16A GSM power socket, please make sure your wall socket can also load 16A, or it will burn the device.
